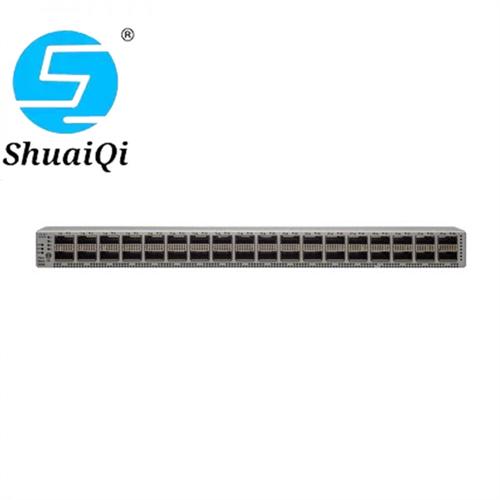

Cisco N9K-C9236C Nexus 9000 Series With 36p 40G 100G QSFP28 36 X 100-Gbps QSFP28 Ports

N9K-C9236C is the Nexus 9200 with 36p 40G 100G QSFP28. Built on the latest Cisco Cloud Scale technology, the Cisco Nexus®9200 platform consists of industry-leading ultra-high-density fixed-configuration data center switches with line-rate Layer 2 and 3 features that support enterprise and commercial applications, service provider hosting, and cloud computing environments. These switches support a wide range of port speeds with flexible combinations of 1/10/25/40/50/100-Gbps connectivity in compact form factors. Using the widely deployed industry-leading Cisco NX-OS Software operating system, the Cisco Nexus 9200 platform is designed for programmable fabric, which offers flexibility, mobility, and scale for service providers and Infrastructure-as-a-Service (IaaS) and cloud providers. It is also designed for the programmable network, which automates configuration and management for customers who want to take advantage of the DevOps operation model and tool sets.

N9K-C9236C Specification

Ports

36 x 100-Gbps QSFP28 ports

Supported speeds

1, 10, 25, 40, 50, and 100 Gbps

Port configuration

36 fixed QSFP28 ports, with each being individually configured into 1 x 100 Gbps, 4 x 10 Gbps, 4 x 25 Gbps, 1 x 40 Gbps, or 2 x 50 Gbps ports

Telemetry support

–

CPU

4 cores

System memory

16 GB

Solid-State Disk (SSD) drive

64 GB

Shared system buffer

30 MB

Management ports

3 RJ-45 ports

USB ports

1

RS-232 serial ports

1

Power supplies (PSU - up to 2)

930W DC, 650W AC, or 1200W HVAC/DC

Typical power (AC)

275W

Maximum power (AC)

640W

Input voltage (AC)

100 to 240V

Input voltage (HVAC)

200 to 277V

Input voltage (DC)

–40 to –72V DC (minimum and maximum) -48 to –60V DC (nominal)

Input voltage (HVDC)

240 to 380V

Frequency (AC)

50 to 60 Hz

Fans

4

Airflow

Port-side intake and exhaust

MTBF (hours)

399,300

Physical (H x W x D)

1.72 x 17.3 x 22.5 in. (4.4 x 43.9 x 57.1 cm)

Acoustics

58.8 dBA 40% fan speed, 65.3 dBA at 70% fan speed, and 69.6 dB at 100% fan speed

RoHS compliance

Yes

Weight

18.2 lb (8.3 kg) (without power supplies or fans)
