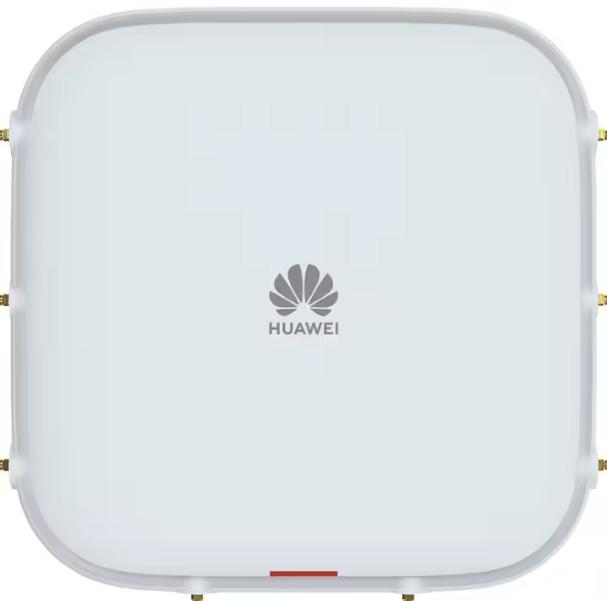

AirEngine 6760-X1 Huawei Indoor WiFi 6 AP 802.11a/B/G/N/Ac/Ac Wave 2/Ax Built-In Smart Antennas PoE Power Supply
AirEngine 6760-X1 Overview
Huawei AirEngine 6760-X1 is an indoor Wi-Fi 6 (802.11ax) Access Points (APs), which support ten spatial streams as the default, with support for up to 12 spatial streams possible through a Right to Use (RTU) software license. In addition, this model supports Software-Defined Radio (SDR) and can flexibly switch between three modes — dual-radio, triple-radio, and dual-radio + one scanning radio — making them ideal for high-interference or high-density access scenarios.
Compare to Similar Items
| Model | Huawei AirEngine 6760-X1 | AirEngine 5760-51 |
| Maximum Number of Users | ≤ 1024 (dual-radio mode) ≤ 1152 (triple-radio mode) Note: The actual number of users varies according to the environment |
≤ 1024 (dual-radio mode) ≤ 1152 (triple-radio mode) Note: The actual number of users varies according to the environment. |
| Port | 1 x 10 GE, 1 x GE electrical, and 1 x 10 GE SFP+ | 1 x 5 GE and 1 x GE electrical |
| IoT | Built-in IoT slots | Built-in IoT slots |
| Antenna Type | Built-in Smart Antennas | Built-in Smart Antennas |
| Radio Protocols | 802.11a/b/g/n/ac/ac Wave 2/ax | 802.11a/b/g/n/ac/ac Wave 2/ax |
| Maximum Rate | Basic capability: 8.35 Gbit/s RTU license upgrade: 10.75 Gbit/s |
Basic capability: up to 5.37 Gbit/s RTU license upgrade: up to 5.95 Gbit/s |
AirEngine 6760-X1 Specification
Huawei AirEngine 6760-X1 Specification |
|
| Dimensions (H x W x D) | 61 mm x 220 mm x 220 mm |
| Power Input | DC: 48 V ± 10% PoE power supply: in compliance with IEEE 802.3bt |
| Maximum Number of Users | ≤ 1024 (dual-radio mode) ≤ 1152 (triple-radio mode) Note: The actual number of users varies according to the environment |

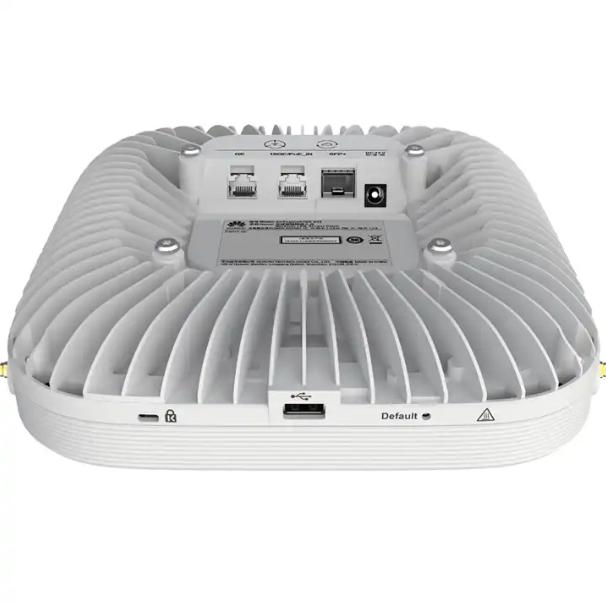

| Port | 1 x 10 GE, 1 x GE electrical, and 1 x 10 GE SFP+ |
| IoT | Built-in IoT slots |
| Operating Temperature | –10°C to 50°C |
| Antenna Type | AirEngine 6760-X1: Built-in Smart Antennas |
| MIMO: Spatial Streams | Basic capability: 2.4 GHz: 4x4:4; 5 GHz: 6x6:6 Capability upgrade via RTU license: 2.4 GHz: 4x4:4; 5 GHz: 8x8:8 2.4 GHz: 4x4:4; 5 GHz-0: 4x4:4; 5 GHz-1: 4x4:4 |
| Radio Protocols | 802.11a/b/g/n/ac/ac Wave 2/ax |
| Maximum Rate | Basic capability: 8.35 Gbit/s RTU license upgrade: 10.75 Gbit/s |
