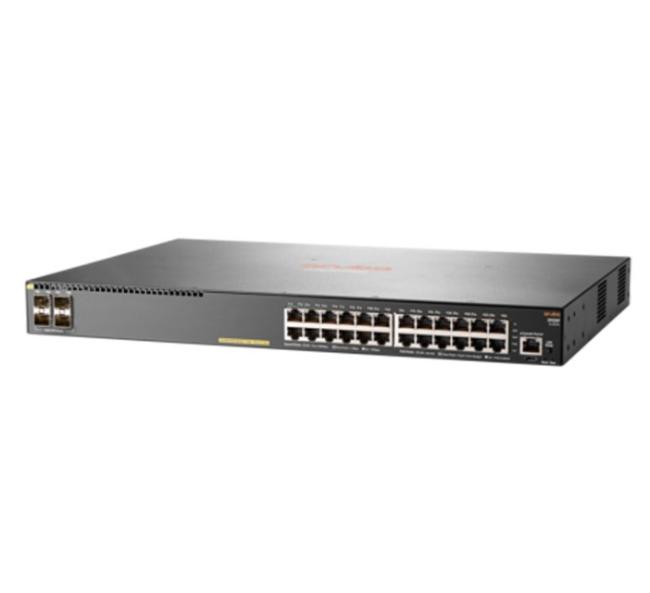

JL261A HPE JL261A - Aruba 2930F Switch Aruba 2930F 24G PoE+ 4SFP Switch
Aruba 2930F Switch Series is designed for customer creating digital workplaces optimized for mobile users with an integrated wired and wireless approach. These basic Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager and Aruba AirWave and are ideal for enterprise edge, SMB and branch offices. A powerful Aruba ProVision ASIC delivers performance and value supporting the latest SDN applications with future proof programmability. The 2930F supports 10GbE uplinks, PoE+, robust QoS, RIP routing, Access OSPF, ACLs, Tunneled Node and IPv6. This JL261A has 24 x 10/100/1000 PoE+ ports and 4 x Gigabit SFP transceiver slots for uplink connectivity. PoE+ is supported with a power budget of 370 Watts.
| Product Code | JL258A | JL259A | JL260A | JL261A | JL262A |
|---|---|---|---|---|---|
| Type | Aruba 2930F 8G PoE+ 2SFP+ Switch | Aruba 2930F 24G 4SFP Switch | Aruba 2930F 48G 4SFP Switch | Aruba 2930F 24G PoE+ 4SFP Switch | Aruba 2930F 48G PoE+ 4SFP Switch |
| I/O ports and slots |
|
|
|
|
|
| Throughput | up to 41.7 Mp/s | up to 41.7 Mp/s | up to 77.4 Mp/s | up to 41.7 Mp/s | up to 77.4 Mp/s |
| Switching capacity | 56 Gb/s | 56 Gb/s | 104 Gb/s | 56 Gb/s | 104 Gb/s |
| JL261A Specification | |
|---|---|
| Type | Aruba 2930F 24G PoE+ 4SFP Switch |
| System specifications | |
| I/O ports and slots | 24 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+) Duplex: 10BASE-T/100BASETX: half or full 1000BASE-T: full only |
| Additional ports and slots | 1 dual-personality (RJ-45 or USB micro-B) serial console port |
| Memory and processor | Dual Core ARM Coretex A9 @ 1016 MHz, 1 GB DDR3 SDRAM Packet buffer size: 12.38 MB 4.5MB Ingress/7.785 Egress, 4 GB eMMC |
| Management |
|
| Performance specifications | |
| 1000 Mb Latency | < 3.8 μs (64-byte packets) |
| 10 Gbps Latency | N/A |
| Throughput | up to 41.7 Mp/s |
| Switching capacity | 56 Gb/s |
| Routing table size | 10000 entries (IPv4), 5000 entries (IPv6) |
| MAC address table size | 32768 entries |
| Physical specifications | |
| Dimensions | 4.39 x 44.25 x 30.42 cm ( 1.73 x 17.42 x 11.98 in) 1U height |
| Electrical specifications | |
| 80plus.org Certification | Silver |
| Description | N/A |
| Maximum heat dissipation | 1601.49 kJ/hr (1518 BTU/hr) |
| Voltage | 100 - 127 / 200 - 240 V ac, rated |
| Current | 4.9/2.4 A |
| Maximum power rating | 445 W |
| Idle power | 36.8 W |
| Frequency | 50/60 Hz |
| PoE power | 370 W PoE+ |
| Environmental specifications | |
| Operating temperature | 0°C to 45°C (32°F to 113°F) up to 5000 Feet - 0C to 40C (32F to 104F) up to 10000 Feet |
| Operating relative humidity | 15% to 95% @ 40°C ( 104°F) noncondensing |
| Nonoperating/Storage temperature | -40°C to 70°C (-40°F to 158°F) up to 15000 Feet |
| Nonoperating/Storage temperature | 15% to 95% @65°C ( 149°F) noncondensing |
| Acoustic | Power: 54.1 dB, Pressure: 40.6 dB |
| Airflow direction | Side-to-side |
| Safety certifications | |
| Safety |
|
| Emissions |
|
| Immunity |
|
