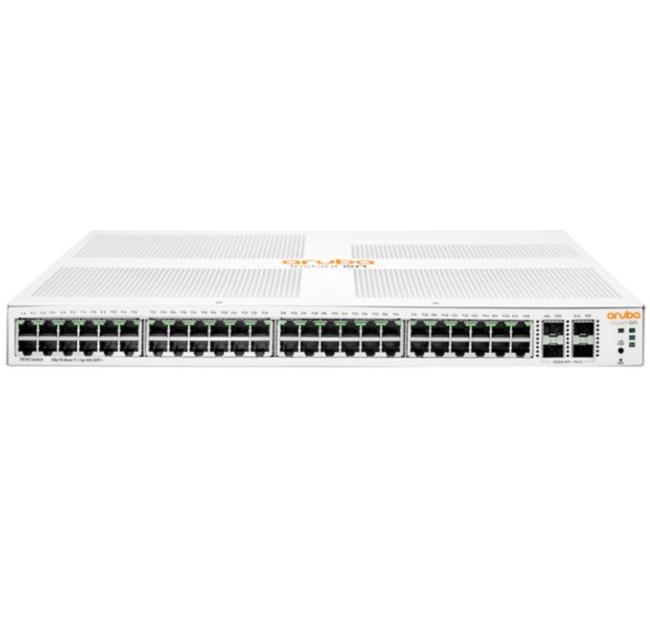

JL686A Aruba Instant On 1930 48G Class4 PoE 4SFP/SFP+ 370W Switch HPE Aruba Instant On 1930 Switches
JL686A is an Aruba Instant On 1930 48G Class4 PoE 4SFP/SFP+ 370W Switch. Aruba Instant On 1930 switches features advanced, smart-managed, fixed configuration Gigabit switches designed for small businesses that are easy-to-deploy and affordable. They’re made to handle today’s bandwidth-heavy applications like voice and video conferencing, enabling consistent connectivity to enhance performance.
| Model | Description |
| J4858D | Aruba 1G SFP LC SX 500m MMF XCVR (5 Units) |
| J4859D | Aruba 1G SFP LC LX 10km SMF Transceivers (5 Units) |
| J8177D | Aruba 1G SFP RJ45 T 100m Cat5e XCVR (5 Units) |
| J9150D | Aruba 10G SFP+ LC SR 300m MMF XCVR:Aruba Aruba Campus Transceivers |
| J9281D | Aruba 10G SFP+ to SFP+ 1m DAC Cable |
| J9283D | Aruba 10G SFP+ to SFP+ 3m DAC Cable |
| Model | Description | Gig Ports | Uplink Ports | Class 4 PoE |
| JL680A | Aruba Instant On 1930 8G 2SFP Switch | 8 | 2 SFP | – |
| JL681A | Aruba Instant On 1930 8G Class4 PoE 2SFP 124W Switch | 8 | 2 SFP | 124W |
| JL682A | Aruba Instant On 1930 24G 4SFP/SFP+ Switch | 24 | 4 SFP/SFP+ | – |
| JL683A | Aruba Instant On 1930 24G Class4 PoE 4SFP/SFP+ 195W Switch | 24 | 4 SFP/SFP+ | 195W |
| JL684A | Aruba Instant On 1930 24G Class4 PoE 4SFP/SFP+ 370W Switch | 24 | 4 SFP/SFP+ | 370W |
| JL685A | Aruba Instant On 1930 48G 4SFP/SFP+ Switch | 48 | 4 SFP/SFP+ | – |
| JL686A | Aruba Instant On 1930 48G Class4 PoE 4SFP/SFP+ 370W Switch | 48 | 4 SFP/SFP+ | 370W |
|
JL686A Specification
|
|
| I/O ports and slots |
48 RJ-45 autosensing 10/100/1000 Class 4 PoE ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASETX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 SFP+ 1/10GbE ports |
| Dimension | 17.42(w) x 10.42(d) x 1.73(h) in (44.25 x 26.47 x 4.39 cm) (1U height) |
| Processor and memory | ARM Cortex-A9 @ 800 MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5 MB |
| Throughput (Mpps) | 130.95 Mpps |
| Switching capacity | 176 Gbps |
| Operating temperature | 32°F to 104°F (0°C to 40°C) |
|
Operating relative humidity |
15% to 95% @ 104°F (40°C) |
|
Nonoperating/Storage temperature |
-40°F to 158°F (-40°C to 70°C) |
|
Nonoperating/Storage relative humidity |
15% to 95% @ 140°F (60°C) |
| Altitude | up to 10,000 ft (3 km) |
| Idle power | 20.9 W |
| PoE | 370 W Class 4 PoE |
| Power Supply | Internal power supply |
