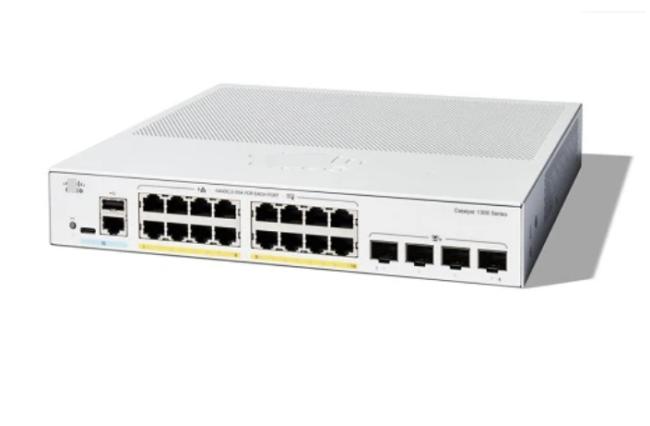

Cisco C1300-16P-4X 16x 10/100/1000 Ports PoE+ Ports With 120W Power Budget 4x 10 Gigabit SFP+ Rack-Mountable
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
Cisco
Product Description
C1300-16P-4X Overview
The Cisco C1300-16P-4X is a robust switch designed to cater to the networking needs of modern enterprises. With 16x 10/100/1000 PoE+ ports and a 120W power budget, it ensures seamless connectivity and power delivery to various devices. Additionally, the switch is equipped with 4x 10 Gigabit SFP+ uplink ports for faster data transfers and better network performance.
Supported Options
| Accessory | Model |
| Power Adapter | PA-1300-16P-AD |
| Rack Mount Kit | RMK-1300-16 |
| SFP+ Transceiver | SFP-10G-LR |
Compare to Similar Items
| Model | Differences |
| Cisco C1300-8P-2X | 8x PoE+ ports, 2x 10 Gigabit SFP+, 60W power budget |
| Cisco C3300-24P-4X | 24x PoE+ ports, 4x 10 Gigabit SFP+, 370W power budget |
| Cisco C9200-24P | 24x PoE+ ports, 4x 1 Gigabit SFP, 370W power budget |
C1300-16P-4X Specification
C1300-16P-4X Specifications |
|
| Capacity in millions of packets per second (mpps) (64-byte packets) | 83.32 |
| Switching capacity in gigabits per second (Gbps) | 112.0 |
| Power dedicated to PoE | 120W |
| Number of ports that support PoE | 16 |
| System power consumption |
110V=24.7W 220V=26.8W |
| Power consumption (with PoE) |
110V=157.6W 220V=156.3W |
| Heat dissipation (BTU/hr) | 537.4 |
| Idle Power |
110V=8.7W 220V=10.3W |
| Total system ports | 16 x Gigabit Ethernet + 4 x 10G |
| RJ-45 ports | 16 x Gigabit Ethernet |
| Combo ports (RJ-45 + Small Form-Factor Pluggable [SFP]) | 4 x SFP+ |
| Packet buffer | 1.5 MB |
| Unit dimensions (W x D x H) |
268 x 297 x 44 mm (10.56 x 11.69 x 1.73 in) |
| Unit weight | 2.49 kg (5.49 lb) |
| Fan (number) | Fanless |
| Acoustic noise | – |
| MTBF at 25°C (hours) | 426,778 |
