N9K-C93108TC-EX Cisco Nexus 93108TC-EX, Nexus 9K,48p 10GT, 6p 100G QSFP28,Spare(No Acc kit,PS&fan)
N9K-C93108TC-EX Overview
N9K-C93108TC-EX is one of the Cisco Nexus 9300-EX switches. Cisco Nexus 9300-EX platforms are the next generation of fixed Cisco Nexus 9000 Series Switches. The new platforms support cost-effective cloud-scale deployments, an increased number of endpoints, and cloud services with wire-rate security and telemetry. The platforms are built on modern system architecture designed to provide high performance and meet the evolving needs of highly scalable data centers and growing enterprises.
Quick Spec

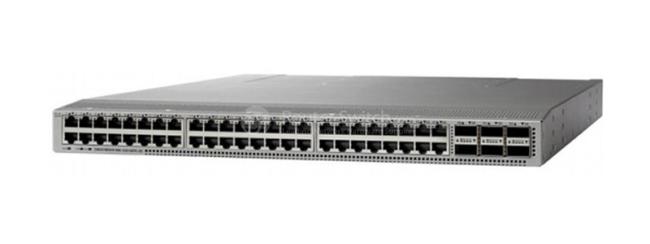

Figure 1 shows the appearance.
Table 1 shows the quick spec.
| Part Number | N9K-C93108TC-EX |
| Ports | 48 x 10GBASE-T and 6 x 40/100-Gbps QSFP28 ports |
| Downlink supported speeds | 100-Mbps and 1/10-Gbps speeds |
| CPU | 4 cores |
| System memory | 24 GB |
| SSD drive | 64 GB |
| System buffer | 40 MB |
| Management ports | 2 ports: 1 RJ-45 and 1 SFP |
| USB ports | 1 |
| RS-232 serial ports | 1 |
| Power supplies (up to 2) | 650W AC, 930W DC, or 1200W HVAC/HVDC |
| Typical power (AC/DC) | 290W |
| Maximum power (AC/DC) | 499W |
|
Physical dimensions (H x W x D) |
1.72 x 17.3 x 22.5 in. (4.4 x 43.9 x 57.1 cm) |
| Weight (without power supplies or fans) | 17.7 lb (8.0 kg) |
Product Details

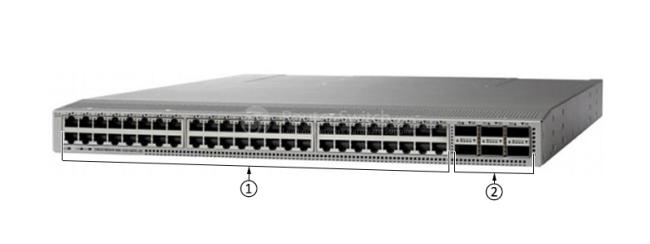

Figure 2 shows the front panel of N9K-C93108TC-EX.
Note:
| ① | 48 x 10GBASE-T downlink ports |
| ② | 6 x 40- or 100-Gigabit QSFP28 optical uplink ports |

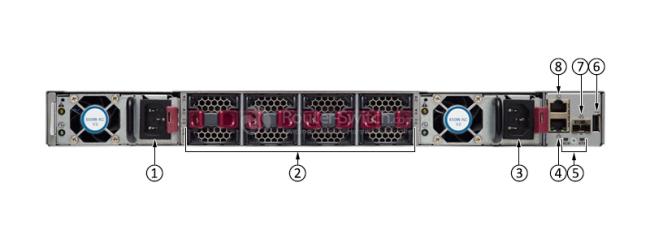

Figure 3 shows the back panel of N9K-C93108TC-EX.
Note:
| ① | Power Supply | ⑤ | Chassis LEDs (Beacon [BCN] and Status [STS]) |
| ② | 4 x Fan Module | ⑥ | USB port used for saving or copying functions |
| ③ | Power Supply | ⑦ | Out-of-band management port (SFP port) |
| ④ | Out-of-band management port (RJ-45 port) | ⑧ | Console port (RS232 port) |
Compare to Similar Item
Table 2 shows the comparison.
| Part Number | N9K-C93180YC-EX | N9K-C93108TC-EX |
| Ports | 48 x 10/25-Gbps and 6 x 40/100-Gbps QSFP28 ports | 48 x 10GBASE-T and 6 x 40/100-Gbps QSFP28 ports |
| Downlink supported speeds | 1/10/25-Gbps speeds | 100-Mbps and 1/10-Gbps speeds |
| CPU | 4 cores | 4 cores |
| System memory | 24 GB | 24 GB |
| SSD drive | 64 GB | 64 GB |
