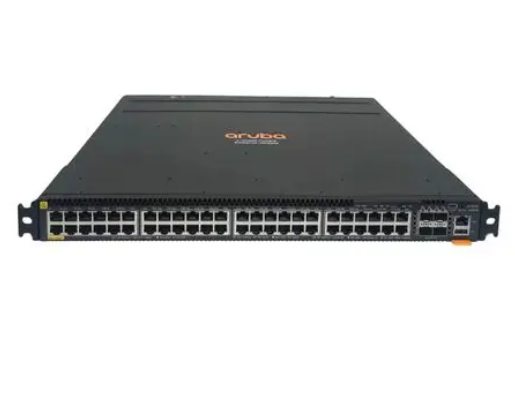

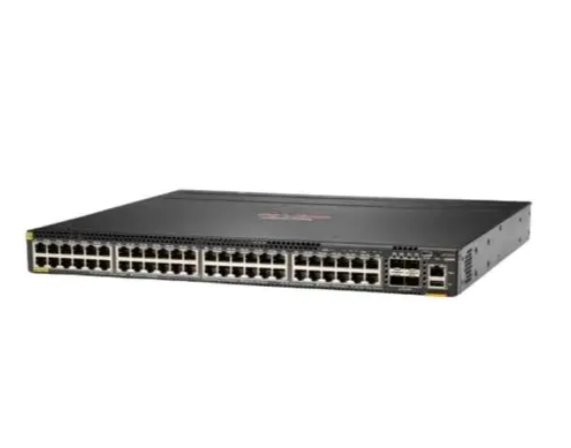

JL661A Aruba 6300M 48-port 1GbE Class 4 PoE And 4-port SFP56 Switch
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1~3 Days
Brand:
Aruba
Product Description
Overview
The JL661A is part of the Aruba 6100 Series Switch, specifically designed for optimal performance and scalability. This high-quality switch combines 48 ports of Gigabit Ethernet with Class 4 Power over Ethernet (PoE) capabilities and 4 ports of SFP56 for increased flexibility and connectivity.
Aruba JL661A Specifications |
|
| Product Model | JL661A |
| Product Brand | Aruba |
| Switch Type | Managed |
| Ports | 48 x 10/100/1000 (PoE) |
| SFP Ports | 4 x 25/40/50/100Gb SFP56 |
| Power-over-Ethernet (PoE) Support | Class 4 |
| Layer | Layer 2/3 |
| Switching Capacity | 176 Gbps |
| Forwarding Rate | 261 Mpps |
| MAC Address Table Size | 32,000 entries |
| Memory | 2 GB RAM, 4 GB flash |
| Switching Features | ACL support, VLAN support, Quality of Service (QoS), STP support |
| Management | Web-based management, Command Line Interface (CLI), SNMPv1, SNMPv2c, SNMPv3 |
| Security | Access control list (ACL), Port security, RADIUS, TACACS+ |
| Redundancy | Link Aggregation (LACP), Hot-swappable fans, Power supply redundancy |
| Dimensions (W x D x H) | 17.3 in x 18.1 in x 1.7 in |
| Weight | N/A |
| Power Consumption | 120W maximum |
| Power Supply | Internal, AC 120/230 V (50/60 Hz) |
| Operating Temperature | 32°F to 113°F (0°C to 45°C) |
| Humidity | 10% to 90%, non-condensing |
