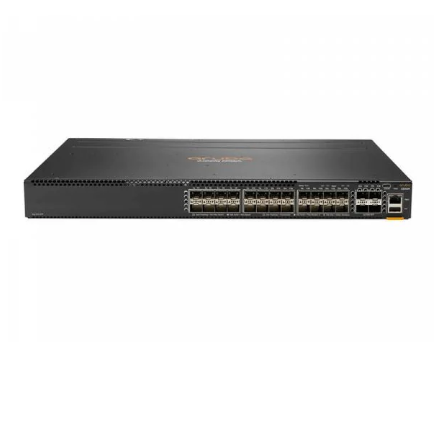

JL658A Aruba 6300M 24-port SFP+ And 4-port SFP56 Switch
Price:
Negotiable
MOQ:
1 PC
Delivery Time:
1~3 Days
Brand:
Aruba
Product Description
JL658A Overview
The Aruba JL658A is an enterprise-grade switch designed to deliver high performance and robust network management for growing businesses. As part of the HPE Aruba lineup, the JL658A is engineered to provide secure and efficient connectivity for complex network infrastructures. This switch is ideal for advancing your network capabilities, with features that seamlessly integrate into existing systems while optimizing traffic management and security protocols.
Key Specifications
- Ports:
- 24 x 1G/10GbE SFP+ ports
- 4 x 1/10/25/50GbE SFP56 uplink/stacking ports
- 24 x 1G/10GbE SFP+ ports
- Performance:
- Switching Capacity: 880 Gbps
- Forwarding Rate: 654 Mpps
- Latency (Max): 1.99 µSec (1Gbps), 1.49 µSec (10Gbps), 2.85 µSec (25Gbps), 2.82 µSec (50Gbps)
- MAC Address Table Size: 32,768
- Switching Capacity: 880 Gbps
- Stacking:
- Maximum Stack Size: 10 members
- Stacking Bandwidth: Up to 200 Gbps per switch
- Maximum Stack Size: 10 members
- Memory: 8 GB DDR4, 32 GB eMMC, 8 MB Packet Buffer
- Management Interfaces:
- 1 x USB-C Console Port
- 1 x Out-of-Band Management (OOBM) Port
- 1 x USB Type A Host Port
- 1 x Bluetooth dongle (for CX Mobile App)
- 1 x USB-C Console Port
- Power:
- Modular power supply slots (minimum 1 required, ordered separately)
- Back-to-front airflow design
- Modular power supply slots (minimum 1 required, ordered separately)
- Physical Characteristics:
- Compact 1U form factor
- Compact 1U form factor
Key Features
-
Equipped with a powerful 7th Gen ASIC for enhanced performance and programmability.
-
Supports high-speed stacking via the SFP56 uplink ports, allowing for scalable network growth.
-
Simplifies management for large networks by allowing multiple switches to be treated as a single logical unit.
-
Provides unified policy enforcement and consistent security for both wired and wireless networks through Dynamic Segmentation.
-
Delivers built-in analytics and automation for real-time monitoring and faster troubleshooting.
