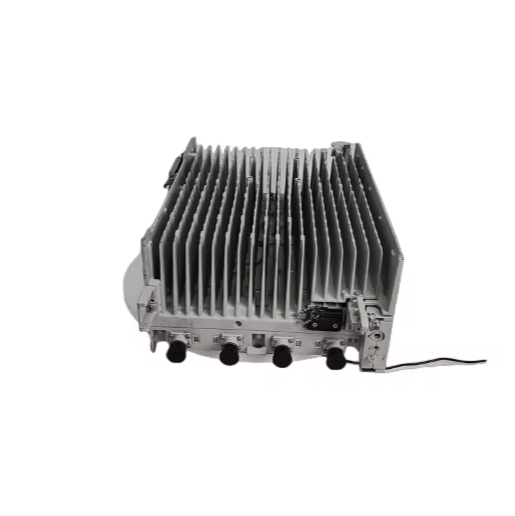

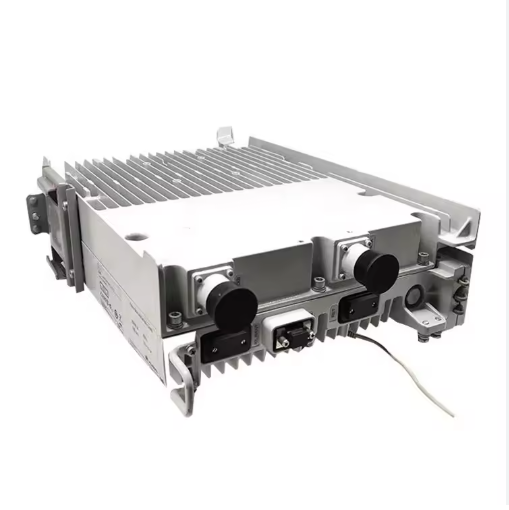

HW RRU5904 For Multi-Mode 2100mhz(4*60W) -48V WD5M215904GB 02311UWT
Overview
The Huawei RRU5904 (multi-mode, e.g. “UWT” version) is a remote radio unit (RRU) designed for cellular base stations. It supports multiple RATs (e.g. GSM, UMTS, LTE FDD, etc.), multiple carriers, operates in various frequency bands (e.g. 2100 MHz, 1800 MHz), offers 4 transmitters / 4 receivers (4T4R), and is intended for outdoor installation. Power is DC (−48 V) but some variants allow AC/DC power modules externally. It has ports for RF antennas, CPRI backhaul, and is built to withstand outdoor environmental stresses (temperature, humidity, solar exposure, etc.).
Key Specifications
Here are the main technical specs for a typical RRU5904UWT / RRU5904 multi‐mode version, based especially on the 2100 MHz variant and similar:
| Spec Category | Value / Detail |
|---|---|
| Supported Frequency Bands | 2100 MHz (UMTS, LTE FDD etc.), 1800 MHz in some variants. |
| Supported RATs | GSM, UMTS, LTE FDD (and possibly NB-IoT depending on model). pdfcoffee.com+3Scribd+3pdfcoffee.com+3 |
| Carrier / Bandwidth Options | LTE FDD carriers with 5 / 10 / 15 / 20 MHz bandwidth. pdfcoffee.com+2Studocu+2 |
| RG Ports / Interfaces | RF: 4 RF ports (connector type 4.3-10) for antenna connections. CPRI: 2 ports. Scribd+1 |
| Power Input | −48 V DC, with operating voltage range approx −36 V to −57 V DC. Alternately can use external AC/DC module in some setups. Scribd+2pdfcoffee.com+2 |
| Power Consumption | For 2100 MHz variant typical consumption ~ 492 W under 50% load at 25 °C. pdfcoffee.com+1 |
| Output / Transmit Power | e.g. in some versions: 4 × 60 W (for LTE) in the 2100 MHz variant. IT +2Studocu+2 |
| Receive Sensitivity | Varies by RAT, number of carriers, etc. Specific values are in the detailed specs. pdfcoffee.com+1 |
