Ericsson RRU 2238 B8 B20 B28B KRC 161 797/1
Price:
Negotiable
MOQ:
1 PC
Delivery Time:
1-3 Days
Brand:
Ericsson
Product Description
Overview

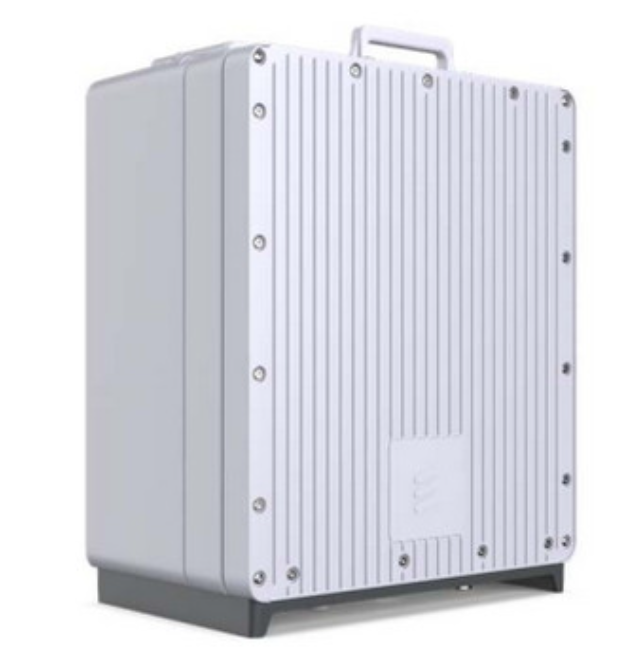

Ericsson RRU 2238 B8 B20 B28B KRC 161 797/1
- Product Name: Ericsson Radio 2238
- Bands Supported: B8, B20, B28B
- Maximum Output Power: 2 x 120W
- Supported Technologies: GSM, WCDMA, LTE, NB-IoT, NR
- Dimensions: 454 mm (Height) x 342 mm (Width) x 240 mm (Depth)
- Weight: 31 kg
Features & Connectivity
- Connectivity: Connects to the main unit or baseband unit via fiber optic cable.
- Power: Supports DC power, typically -48V.
- CPRI: Supports CPRI (Common Public Radio Interface) for data transfer, with common boot line rates including 2.5 Gbit/s and 9.8 Gbit/s.

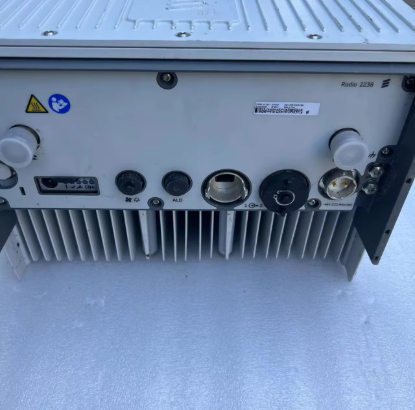

- RF Port: Uses 4.3-10 connectors for the RF ports and supports BIAS-T.
- Data Port: SFP+ connectors are used for the data ports.
Environmental & Installation
- Operating Environment: Designed to operate in a normal environment with a temperature range of -40°C to +55°C.
- Installation: Can be installed on walls or poles, with appropriate mounting equipment available.
- Color: Body is NCS S 1002-B, and the front is NCS S 6502-B.
![]()
