S6730-H48X6C Huawei S6730-H48X6C 4810GE SFP+ Ports 640GE QSFP28 Ports Optional License For Upgrade To 6*100GE QSFP28 Without Power Module

Name: S6730-H48X6C Huawei S6730-H48X6C 48*10GE SFP+ Ports 6*40GE QSFP28 Ports Optional License For Upgrade To 6*100GE QSFP28 Without Power Module
Brand: LonRise Equipment Co. Ltd.

Price Negotiable

Price: Negotiable

MOQ: 1 PC

Delivery Time: 1-3 days

Brand: Huawei

Product Description

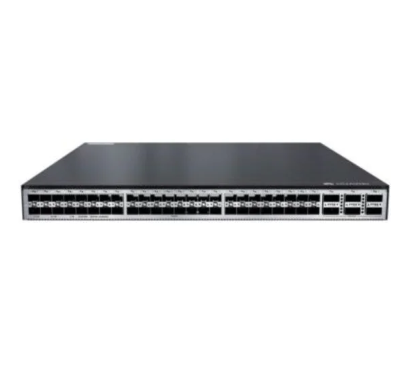

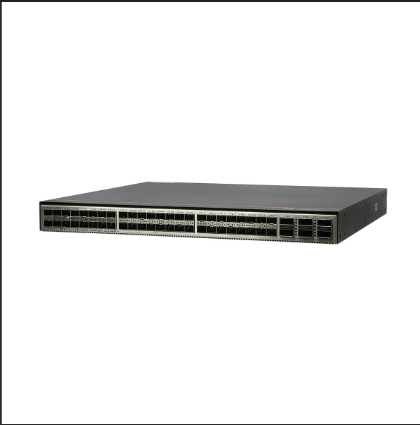

S6730-H48X6C Overview

Huawei CloudEngine S6730-H series full-featured 10 GE switches are Huawei's new-generation fixed switches ,to provide 10 GE downlink ports as well as 100 GE uplink ports.

Table 1 shows the Quick Specs.

Product Code	S6730-H48X6C
Fixed ports	48 x 10 Gig SFP+, 6 x 40/100 Gig QSFP28
Dimensions (W x D x H)	442 mm x 420 mm x 43.6 mm
Chassis height(U)	1U
Input voltage	AC Power Rated AC voltage: 100V to 240V AC; 50/60 Hz Max. AC voltage: 90V to 290V AC; 45–65 Hz DC Power Rated DC voltage: –48V～–60V Max. DC voltage:-38.4V DC～-72V DC
Input current	AC 600W:Max 8A DC 1000W:Max 30A
Maximum power consumption	274W
Minimum power consumption	97W

S6730-H48X6C Specification

S6730-H48X6C Specification
Fixed ports	48 x 10 Gig SFP+, 6 x 40/100 Gig QSFP28
Dimensions (W x D x H)	442 mm x 420 mm x 43.6 mm
Chassis height(U)	1U
Input voltage	AC Power Rated AC voltage: 100V to 240V AC; 50/60 Hz Max. AC voltage: 90V to 290V AC; 45–65 Hz DC Power Rated DC voltage: –48V～–60V Max. DC voltage:-38.4V DC～-72V DC
Input current	AC 600W:Max 8A DC 1000W:Max 30A
Maximum power consumption	274W
Minimum power consumption	97W
Operating temperature	0–1800 m altitude: -5°C to 45°C 1800–5000 m altitude: The operating temperature reduces by 1°C every time the altitude increases by 220 m.
Storage temperature	-40-70℃
Operating altitude	5000 m
Noise (sound pressure at normal temperature)	65dB(A)
Surge protection specification	AC power interface: differential mode: ±6kV: common mode: ±6kV DC power interface: differential mode: ±2kV: common mode: ±4kV
Power supply type	600W AC Power 1000W DC Power
Relative humidity	5% to 95% (non-condensing)
Fans	4, Fan modules are pluggable
Heat dissipation	Heat dissipation with fan, intelligent fan speed adjustment
MAC	Up to 384K MAC address entries IEEE 802.1d standards compliance MAC address learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses
VLAN	4K VLANs Guest VLANs and voice VLANs GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports VLAN mapping
ARP	Static ARP Dynamic ARP
IP routing	Static routes, RIP v1/2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, routing policy Up to 256K FIBv4 entries Up to 80K FIBv6 entries
Interoperability	VLAN-Based Spanning Tree (VBST), working with PVST, PVST+, and RPVST Link-type Negotiation Protocol (LNP), similar to DTP VLAN Central Management Protocol (VCMP), similar to VTP
Wireless service	AP access control, AP domain management, and AP configuration template management Radio management, unified static configuration, and dynamic centralized management WLAN basic services, QoS, security, and user management CAPWAP, tag/terminal location, and spectrum analysis
Ethernet loop protection	RRPP ring topology and RRPP multi-instance Smart Link tree topology and Smart Link multi-instance, providing millisecond-level protection switchover SEP ERPS (G.8032) BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIM STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s) BPDU protection, root protection, and loop protection
MPLS	MPLS L3VPN MPLS L2VPN (VPWS/VPLS) MPLS-TE MPLS QoS
IPv6 features	Neighbor Discover (ND) PMTU IPv6 Ping, IPv6 Tracert, IPv6 Telnet ACLs based on source IPv6 addresses, destination IPv6 addresses, Layer 4 ports, or protocol types Multicast Listener Discovery snooping (MLDv1/v2) IPv6 addresses configured for sub-interfaces, VRRP6, DHCPv6, and L3VPN
Multicast	IGMP v1/v2/v3 snooping and IGMP fast leave Multicast forwarding in a VLAN and multicast replication between VLANs Multicast load balancing among member ports of a trunk Controllable multicast Port-based multicast traffic statistics IGMP v1/v2/v3, PIM-SM, PIM-DM, and PIM-SSM MSDP Multicast VPN
QoS/ACL	Rate limiting in the inbound and outbound directions of a port Packet redirection Port-based traffic policing and two-rate three-color CAR Eight queues on each port DRR, SP, and DRR+SP queue scheduling algorithms WRED Re-marking of the 802.1p and DSCP fields of packets Packet filtering at Layer 2 to Layer 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP source/destination port number, protocol type, and VLAN ID Queue-based rate limiting and shaping on ports
Security	Hierarchical user management and password protection DoS attack defense, ARP attack defense, and ICMP attack defense Binding of the IP address, MAC address, port number, and VLAN ID Port isolation, port security, and sticky MAC MAC Forced Forwarding (MFF) Blackhole MAC address entries Limit on the number of learned MAC addresses IEEE 802.1X authentication and limit on the number of users on a port AAA authentication, RADIUS authentication, and HWTACACS authentication NAC SSH V2.0 HTTPS CPU protection Blacklist and whitelist Attack source tracing and punishment for IPv6 packets such as ND, DHCPv6, and MLD packets IPSec for management packet encryption ECA Deception
Reliability	LACP E-Trunk Ethernet OAM (IEEE 802.3ah and IEEE 802.1ag) ITU-Y.1731 DLDP LLDP BFD for BGP, BFD for IS-IS, BFD for OSPF, BFD for static routes
VXLAN	VXLAN functions, VXLAN L2 and L3 gateways, BGP EVPN VXLAN configuration using NETCONF/YANG
SVF	Acting as the parent node to vertically virtualize downlink switches and APs as one device for management Two-layer client architecture ASs can be independently configured. Services not supported by templates can be configured on the parent node. Third-party devices allowed between SVF parent and clients
iPCA	Marking service packets to obtain the packet loss ratio and number of lost packets in real time Measurement of the number of lost packets and packet loss ratio on networks and devices
Management and maintenance	Cloud-based management Virtual cable test SNMP v1/v2c/v3 RMON Web-based NMS System logs and alarms of different severities GVRP MUX VLAN NetStream Telemetry
