Product Description

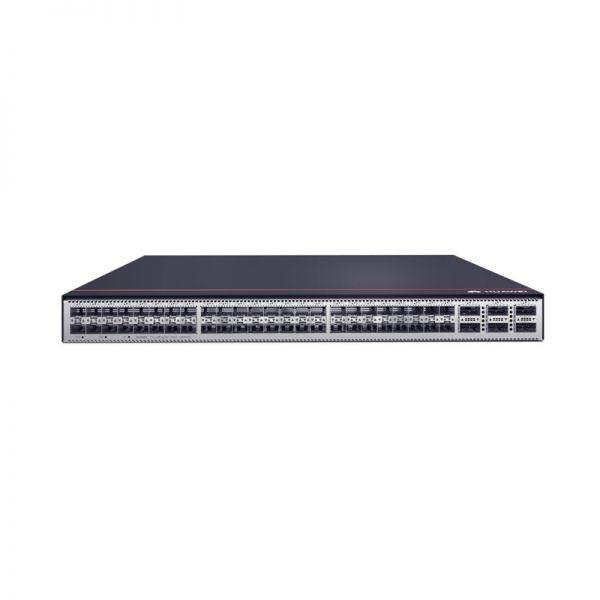

CE6820-48S6CQ Overview
The Huawei CE6820-48S6CQ is a core network switch under the CE6800 series, designed to provide superior performance and flexibility for high-density data centers. With advanced networking capabilities, it offers robust throughput and extensive scalability, making it an ideal choice for modern enterprises seeking efficient and reliable network solutions.
Quick Spec
| Brand | Huawei |
| Model | CE6820-48S6CQ |
| Series | CE6800 |
| Ports | 48 x 10GE SFP+, 6 x 100GE QSFP28 |
| Switching Capacity | 2.16 Tbps |
Product Features
- High-density 10GE/100GE ports for optimized network performance.
- Advanced traffic control with dynamic load balancing.
- Intelligent routing for efficient data traffic management.
- Energy-efficient design reducing operational costs and environmental impact.
- Comprehensive security features to protect network integrity.
Product Applications
- High-density data centers requiring rapid and reliable data processing capabilities.
- Large enterprise networks with demanding traffic and connectivity requirements.
- Scalable cloud computing environments needing flexible and efficient switch solutions.
Supported Options
| Accessory | Model |
|---|---|
| 100GE QSFP28 Transceiver | LPUF-100G-EX |
| 10GE SFP+ Transceiver | SP6010-LR |
| Power Supply Unit | TPWR-1200 |
Compare to Similar Items
| Feature | CE6820-48S6CQ | CE6810-48S6Q | CE6851-48S6CQ |
|---|---|---|---|
| 10GE Ports | 48 | 48 | 48 |
| 100GE Ports | 6 | 6 | 12 |
| Switching Capacity | 2.16 Tbps | 1.92 Tbps | 3.2 Tbps |
| Series | CE6800 | CE6800 | CE6800 |
| Usage | High-density data centers | Standard enterprises | Large-scale data centers |
CE6820-48S6CQ, Huawei CE6800 Switch, 48x10GE SFP+/6x100GE QSFP28/No Fan & PSU Specification
| CE6820-48S6CQ Specifications | |
| Brand | Huawei |
| Model | CE6820-48S6CQ |
| Product Series | CE6800 |
| Ports | 48 GE SFP and 6 40GE QSFP+ |
| Switching Capacity | 2.16 Tbps |
| Forwarding Performance | 1800 Mpps |
| Flash Memory | 2 GB |
| CPU | Quad-core 1.5 GHz Processors |
| RAM | 4 GB |
| Dimensions (W x D x H) | 442 mm ?? 420 mm ?? 43.6 mm |
| Maximum Voltage | 90 V to 264 V |
| Maximum Power Consumption | 115W |
| Operating Temperature | 0??C to 45??C |
| Storage Temperature | -40??C to 70??C |
| Relative Humidity, Non-Condensing | 5% RH to 95% RH |
| Noise | Less than 56 dB |
| MTBF | More than 200,000 hours |
| MAC Address Table Size | 256K |
| VLAN IDs | 4K |
| Static Routes | 60,000 |
| Layer 3 Routing Protocols | OSPF, BGP, IS-IS |
