CE5880-48T6Q-EI, Huawei CE5800 Switch, 48x10GE SFP+/6x40GE QSFP+/No Fan & PSU
Price:
Negotiable
MOQ:
1
Delivery Time:
2-3 days
Brand:
Huawei
Product Description
CE5880-48T6Q-EI, Huawei CE5800 Switch, 48x10GE SFP+/6x40GE QSFP+/No Fan & PSU Overview
The Huawei CE5880-48T6Q-EI is a high-performance switch designed to meet the needs of modern, scalable data centers. As part of the CE5800 series, it delivers impressive performance, flexible expandability, and robust features. It's an ideal solution for businesses looking to enhance their network infrastructure with capabilities to handle intense traffic loads effectively.
Quick Specs

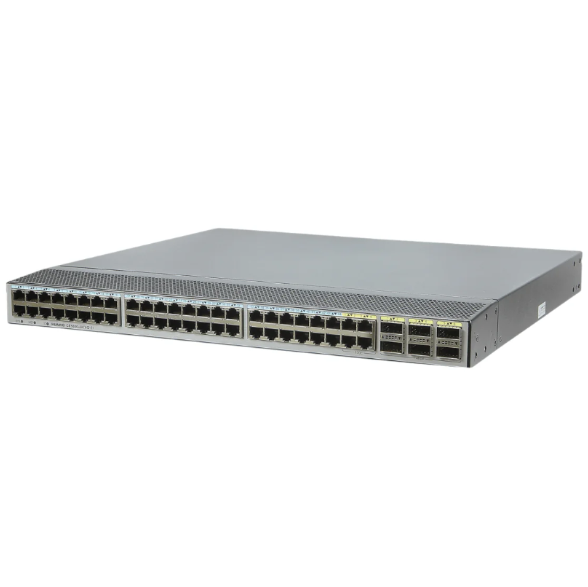

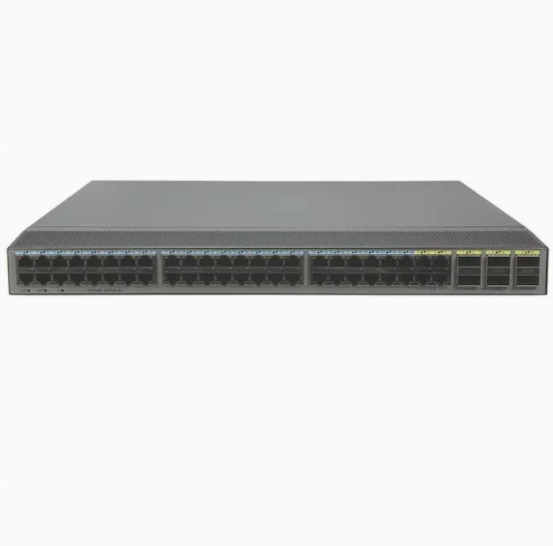

Figure shows the appearance of CE5880-48T6Q-EI.
Quick Specs
Table 1 shows the Quick Specs.
| Model | CE5880-48T6Q-EI |
| Series | CE5800 |
| Ports | 48 x 10GE SFP+, 6 x 40GE QSFP+ |
| Throughput | 2.4 Tbps |
| MAC Address Table | 256K |
Product Features
- High Density: Supports up to 48 x 10GE interfaces and 6 x 40GE interfaces.
- Advanced Security: Built-in advanced security features including MACSEC encryption.
- Energy Efficient: Designed with energy-saving technologies to reduce power consumption.
- Layer 2 and Layer 3 Features: Comprehensive L2/L3 functionality for better network performance.
- Virtualization Support: Supports VXLAN for network virtualization.
CE5880-48T6Q-EI, Huawei CE5800 Switch, 48x10GE SFP+/6x40GE QSFP+/No Fan & PSU Specification
|
CE5880-48T6Q-EI Specifications |
|
| Model | CE5880-48T6Q-EI |
| Brand | Huawei |
| Series | CE5800 |
| Ports | 48 x 10GE SFP+ |
| QoS | Supported |
| Switching Capacity | 2.56 Tbps |
| Forwarding Performance | 720 Mpps |
| Redundant Power Supply | Supported |
| Dimensions (H x W x D) | 44.0 mm x 442.0 mm x 420.0 mm |
| Operating Temperature | 0℃ to 45℃ |
| Storage Temperature | -40℃ to 70℃ |
| Input Voltage | 100V-240V AC, 50/60 Hz |
| Fan | Hot-swappable, variable speed |
| MAC Address Table | 32K |
| Maximum VLANs | 4K |
| Spanning Tree Protocols | STP, RSTP, MSTP |
| Jumbo Frame | Supported, 9KB |
| IPv6 | Supported |
| Security Features | 802.1X, ACL, SSH, RADIUS |
| Management | QinQ, SNMP, RMON, Web-based GUI |
