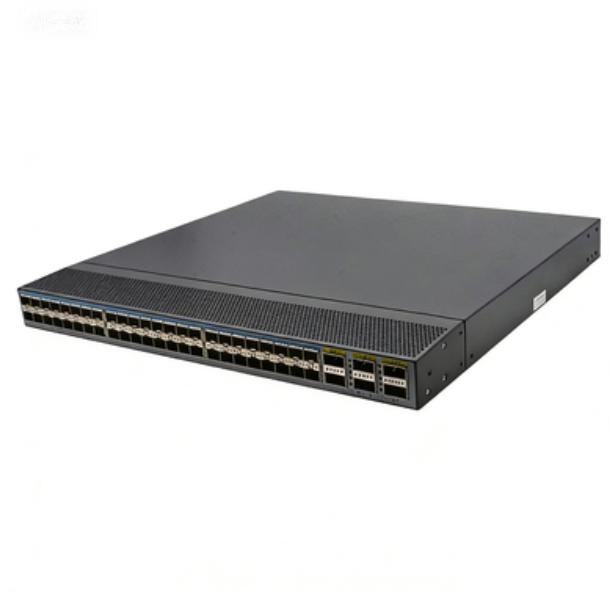

CE6855-48S6Q-HI, Huawei CE6800 Switch, 48x10G SFP+, 6x40G QSFP+, No Fan & PSU
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
2-3 days
Brand:
HUAWEI
Product Description
CE6855-48S6Q-HI Overview
The Huawei CE6855-48S6Q-HI Switch is a high-end ICT product engineered to provide superior network performance. With 48-Port 10G SFP+ and 6-Port 40GE QSFP+, this switch is perfect for data centers and high-throughput environments, offering unparalleled reliability and scalability for enterprise-level businesses.
CE6855-48S6Q-HI Product Highlights
- 48-Port 10G SFP+
- 6-Port 40GE QSFP+
- High performance and reliability
- Enterprise-level scalability
- Flexible fan and power module configuration
Product Features Comparison
| Feature | CE6855-48S6Q-HI | Cisco Nexus 3548P | Juniper EX4600-40F | Arista 7050X3 | HPE 5950 | D S4820T |
|---|---|---|---|---|---|---|
| Port Configuration | 48 x 10G, 6 x 40G | 48 x 10G, 4 x QSFP+ | 40 x 10G, 6 x QSFP+ | 48 x 10G, 6 x QSFP28 | 48 x 10G, 6 x 40G | 48 x 10G, 4 x QSFP+ |
| Switching Capacity | 2.56 Tbps | 1.28 Tbps | 1.44 Tbps | 3.84 Tbps | 2.56 Tbps | 1.33 Tbps |
| Forwarding Rate | 1,440 Mpps | 960 Mpps | 960 Mpps | 2.88 Bpps | 1,440 Mpps | 1,333 Mpps |
| Power Supply | Optional | Dual AC/DC | AC/DC | AC/DC | AC/DC | Dual AC/DC |
| Fan Configuration | Optional | Fixed | Fixed | Optional | Optional | Fixed |
CE6855-48S6Q-HI Product Application Scenarios
- Enterprise data centers
- High-throughput computing
- Scalable networking solutions
Optional Add-ons
| Accessory Model | Description |
|---|---|
| FAN-024A | Cooling fan module for CE6855 |
| PSU-600W | 600W Power Supply Unit for CE6855 |
| SFP-10G-SR | SFP+ 10GBASE-SR transceiver |
CE6855-48S6Q-HI, Huawei CE6800 Switch, 48x10G SFP+, 6x40G QSFP+, No Fan & PSU Specification
| CE6855-48S6Q-HI Specification | |
| Model | CE6855-48S6Q-HI |
| Power source type | AC/DC |
| Heat dissipation mode | Air cooling |
| Airflow | Front-to-back or back-to-front, depending on the fan modules and power modules |
| Power module backup | 1+1 backup |
| Fan module backup | 1+1 backup not supported |
| Maximum power consumption | 216 W |
| Typical power consumption | 116 W (100% throughput, SFP+ cables on 48 ports and QSFP+ cables on 6 ports, double power modules) |
| Maximum heat dissipation | 737 BTU/hr |
| Typical heat dissipation | 396 BTU/hr (100% throughput, SFP+ cables on 48 ports and QSFP+ cables on 6 ports, double power modules) |
| Processor | 1.2 GHz, quad-core |
| DRAM Memory | 2 GB |
| NOR Flash | 16 MB |
| NAND Flash | 1 GB |
| Service port supporting the stack function | 10GE optical ports and 40GE optical ports |
