CE6855-48XS8CQ-F, Huawei CE6800 Switch, 48x10GE Electric/8x100GE QSFP28/2 AC PSU
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
2-3 days
Brand:
HUAWEI
Product Description
CE6855-48XS8CQ-F Overview

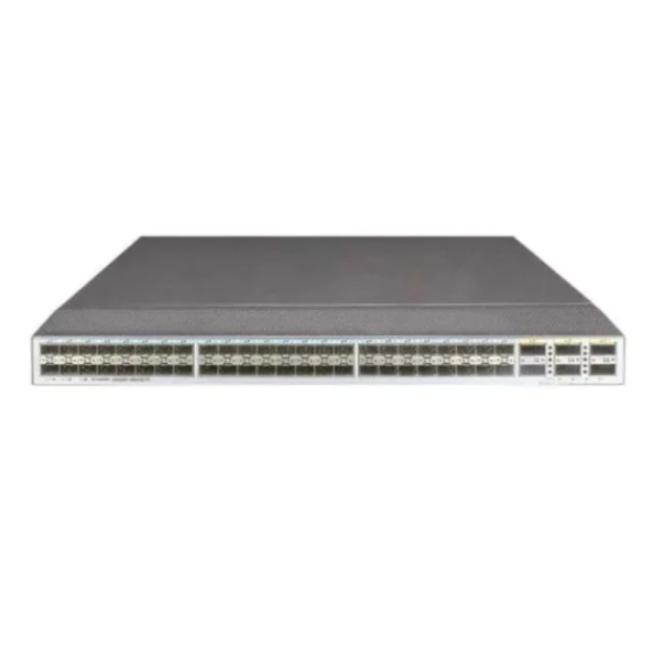

Huawei CE6855-48XS8CQ-F is a versatile data center switch featuring 48 x 10GE electric ports and 8 x 100GE QSFP28 ports, complete with dual AC power supplies and front-to-back airflow. Ideal for enterprise and cloud data centers, it ensures robust, high-speed connections.
CE6855-48XS8CQ-F Product Highlights
- High Port Density
- 100GE Uplinks
- Redundant Power Supplies
- Front-to-Back Airflow
- High Performance
Product Features Comparison
| Feature | CE6855-48XS8CQ-F | CE6850-48T4S-EI | CE8850-64CQ | CE6856-48S8CQ | CE6851-48S6Q-HI | CE6865-24S2Q-HI | CE6870-48S6CQ-HI |
|---|---|---|---|---|---|---|---|
| 10GE Ports | 48 | 48 | 64 | 48 | 48 | 24 | 48 |
| 100GE Ports | 8 | 0 | 40 | 8 | 6 | 2 | 6 |
| Power Supplies | 2 AC | 2 AC | 4 AC/DC | 2 AC | 2 AC | 2 AC | 2 AC |
| Fan Airflow | Front-to-Back | Front-to-Back | Front-to-Back | Front-to-Back | Back-to-Front | Front-to-Back | Front-to-Back |
| Use Case | Data Center | Enterprise | Core Network | Data Center | Enterprise | Enterprise | Data Center |
CE6855-48XS8CQ-F Product Application Scenarios
- Enterprise Data Centers
- Cloud Computing Networks
- High-Density Network Environments
Optional Add-ons
| Model | Description |
|---|---|
| QSFP-100G-CU3M | 100G QSFP28 Direct Attach Copper Cable, 3m |
| SFP-10G-LR | 10GBASE-LR SFP+ Transceiver |
| FAN-023A | Replacement Fan Module |
CE6855-48XS8CQ-F, Huawei CE6800 Switch, 48x10GE Electric/8x100GE QSFP28/2 AC PSU Specification
| CE6855-48XS8CQ-F Specifications | |
| Model | CE6855-48XS8CQ-F |
| 10GE Electric Ports | 48 |
| 100GE QSFP28 Ports | 8 |
| Power Supply | 2 x AC Power Supply Units |
| Fan Box | 4 |
| Airflow Direction | Front-to-Back |
| Switching Capacity | 6.4 Tbps |
| Forwarding Performance | 4,800 Mpps |
| Dimensions (HxWxD) | 43.6 mm x 436 mm x 600 mm |
| Power Consumption | Less than 450W |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 70°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| MTBF | Over 200,000 hours |
| Layer Support | Layer 2 and Layer 3 |
| MAC Address Table | 96,000 |
| VLAN IDs | 4,094 |
| Jumbo Frames | Up to 9,216 bytes |
| Quality of Service (QoS) | Supported |
| Stacking | Supported, up to 9 units |
| Management | CLI, SNMP, Web UI, RMON |
| Security Features | 802.1x, RADIUS, TACACS+, SSH |
| Compliance | RoHS, CE, FCC |
