Hubei Custom Network Products CE8850-Ham 02354wbd CE8850-Ham Network Switch 32*100ge Qsfp28 Ethernet Switch
Price:
Negotiable
MOQ:
1
Delivery Time:
2-3 days
Brand:
Huawei
Product Description
Hubei Custom Network Products CE8850-Ham 02354wbd CE8850-Ham Network Switch 32*100ge Qsfp28 Ethernet Switch

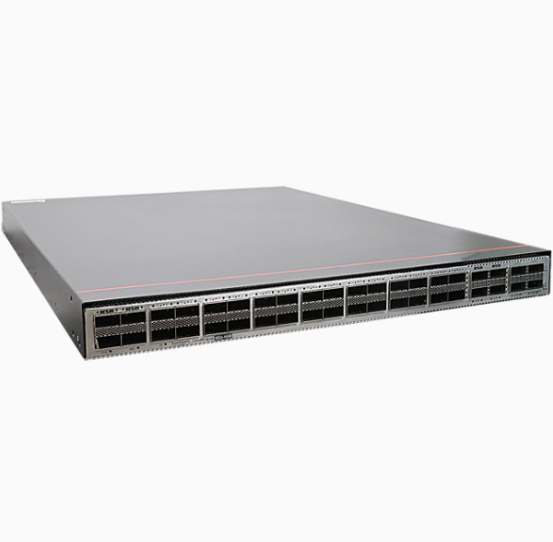

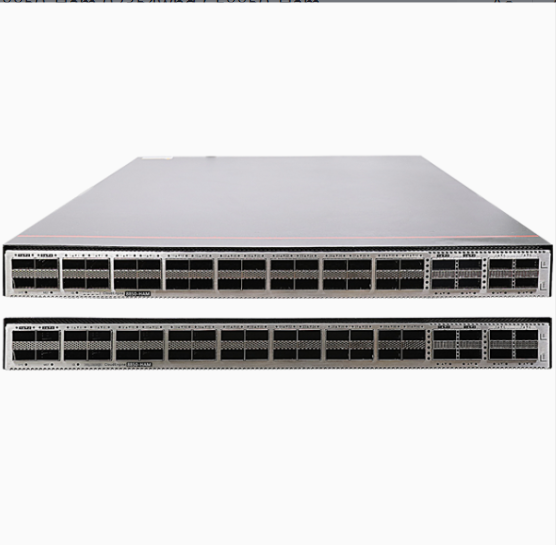

The Huawei CloudEngine CE8850-HAM is a high-performance fixed data center switch designed for cloud computing, storage, and AI scenarios. It provides high-density 100GE and 400GE interfaces with flexible breakout options, delivering ultra-high throughput and low latency. With redundant power modules and fans, the CE8850-HAM ensures carrier-grade reliability and scalability, making it ideal for spine-leaf architectures in modern data centers.
Quick Specs
Table 1 shows the Quick Specs.
Model NO.
CE8850-HAM
Transmission Rate
10/100/1000Mbps
Brand
Hw
Description1
CE8850-Ham Switch
Part Number
02354wbd
Use
Data Center Switches
Model
CE8850-Ham
Transport Package
Mail Box Packing
Origin
Hubei, China
Production Capacity
100 Piece/Pieces Per Month
Hubei Custom Network Products CE8850-Ham 02354wbd CE8850-Ham Network Switch 32*100ge Qsfp28 Ethernet Switch
| Basic Information | |
| Description | CE8850-HAM switch (32*100GE QSFP28, 8*400GE QSFPDD, without fan and power modules)(CM) |
| Part Number | 02354WBD |
| Model | CE8850-HAM |
| First supported version | V300R022C00 |
| Other part numbers | 02354WBE (CE8850-HAM switch (32*100GE QSFP28, 8*400GE QSFPDD, 2*AC power modules, 6*fan modules, port-side intake)(CM)) 02354WBF (CE8850-HAM switch (32*100GE QSFP28, 8*400GE QSFPDD, 2*AC power modules, 6*fan modules, port-side exhaust)(CM)) |
| Short Name | CE8850-HAM |
| Technical Specifications | |
| Dimensions with packaging (H x W x D) [mm (in.)] | 260 mm x 790 mm x 590 mm (10.24 in. x 31.10 in. x 23.23 in.) |
| Dimensions without packaging (H x W x D) [mm (in.)] | - Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442 mm x 600 mm (1.72 in. x 17.40 in. x 23.62 in.) - Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442 mm x 625.5 mm (1.72 in. x 17.40 in. x 24.63 in.) |
| Weight without packaging [kg (lb)] | 9.1 kg (excluding optical modules, power modules, and fan modules) |
| Weight without packaging (full configuration) [kg (lb)] | 12.2 kg (including AC power modules and fan modules, excluding optical modules) |
| Weight with packaging [kg (lb)] | 13.4 kg (29.54 lb) |
| Weight with packaging (full configuration) [kg (lb)] | 16.5 kg (36.37 lb) |
| Installation Type | Cabinet Installation |
| CPU | 4-core, 1.4 GHz |
| Memory | DRAM: 8 GB |
| NOR Flash | 64 MB |
| NAND Flash | 4 GB |
| USB | It can be used for log backup and USB-based deployment. This function is reserved. |
| Power supply mode | AC,DC,HVDC |
| Console port | RJ45 |
