HW CE5855-48T4S2Q-EI Switch(48-Port GE RJ45,4-Port 10G SFP+,2-Port 40G QSFP+,2*FAN Box,Port-side Intake,Without Power Module)
CE5855-48T4S2Q-EI-B Overview
HW CE5855-48T4S2Q-EI-B provides 48 * GE line-speed ports plus 4 * 10 GE and 2 * 40G upstream ports for stacking up to 16 switches. 10 GE and 40G ports enable creation of a non-blocking stack that can extend across geographical distances between data centers. Using the HW VRP8 software platform, CE5800 switches support Transparent Interconnection of Lots of Links (TRILL) and have a high stacking capability (up to 16-member switches in a stack system). In addition, the airflow direction (front-to-back or back-to-front) can be changed. CE5800 switches can work with CE12800 switches to build an elastic, virtualized, high-quality fabric that meets the requirements of cloud-computing data centers. CE5800 switches provide high-density GE access to help enterprises build a scalable data center network platform for cloud computing. They can also be used as aggregation or access switches for enterprise campus networks.
Quick Specs

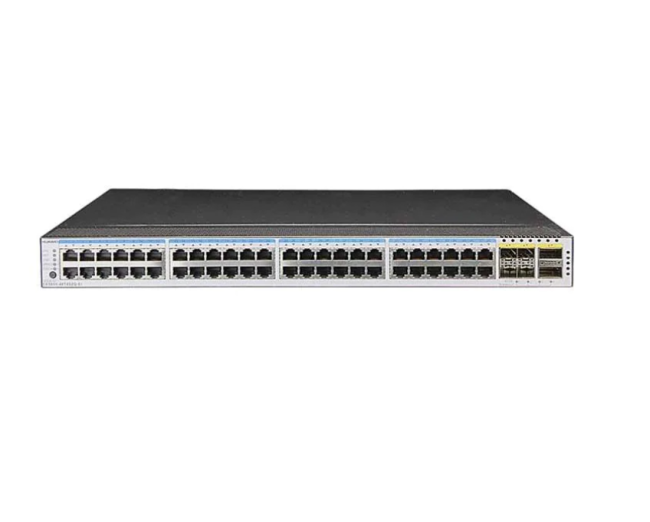

Figure 1 shows the appearance of CE5855-48T4S2Q-EI-B.
Table 1 shows the Quick Specs.
| Product Code | CE5855-48T4S2Q-EI-B |
| Software Version | V100R005C10 and later |
| Base-T Ports | 48 |
| SFP+ Ports | 4 |
| QSFP+ Ports | 2 |
| Switching Capacity | 336 Gbit/s |
| Forwarding Rate | 252 Mpps |
| Power module type | Pluggable AC or DC power module, 1+1 backup supported |
| Rated voltage range |
100 V AC to 240 V AC, 50/60 Hz -48 V DC to -60 V DC |
| Maximum power consumption | 103W |
| Airflow | Front-to-back or back-to-front, depending on the fan modules and power modules used in the chassis |
| Dimensions (W x D x H) | 442 mm x 420 mm x 43.6 mm |
| Weight (fully loaded) | 8.4 kg (18.5 lb) |
Product Details
Figure 2 shows the CE5855-48T4S2Q-EI-B rear view (port side).
Note:
| 1 | Forty-eight 10/100/1000BASE-T Ethernet electrical ports |
| 2 | Four 10GE SFP+ Ethernet optical ports |
| 3 | Two 40GE QSFP+ Ethernet optical ports |
Figure 3 shows the CE5855-48T4S2Q-EI-B front view (power supply side).
Note:
| 1 | Power supply slot 1 |
| 2 | Fan slot 1 |
| 3 | Console port |
| 4 | Barcode label |
| 5 | Fan slot 2 |
| 6 | Power supply slot 2 |
| 7 | USB port |
| 8 | ETH management port (RJ45) |
The Modules
Table 2 shows the recommended elements for the CE5855-48T4S2Q-EI-B.
| Model | Description |
| GE-SFP Optical Transceiver | |
| eSFP-GE-SX-MM850 | Optical Transceiver, eSFP, GE, Multi-mode Module(850nm, 0.55km, LC) |
| SFP-GE-LX-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 10km, LC) |
| S-SFP-GE-LH40-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 40km, LC) |
| S-SFP-GE-LH40-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module(1550nm, 40km, LC) |
| 10G-SFP+ Optical Transceiver | |
| SFP-10G-USR | 10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.1km, LC) |
| OMXD30000 | Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.3km, LC) |
| GE Copper Transceiver | |
| SFP-1000BaseT | Electrical Transceiver,SFP,GE,Electrical Interface Module(100m,RJ45) |
| FAN-040A | |
| FAN-040A-F | HW Fan box(F,FAN panel side intake) FAN-040A-F |
| FAN-040A-B | HW Fan box(B,FAN panel side exhaust) FAN-040A-B |
Compare to Similar Items
Table 3 shows the comparison of CE5855-48T4S2Q-EI-B and CE5855-24T4S2Q-EI-F.
| Product Code | CE5855-48T4S2Q-EI-B | CE5855-24T4S2Q-EI-F |
| Software Version | V100R005C10 and later | V100R005C10 and later |
| Base-T Ports | 48 | 24 |
| SFP+ Ports | 4 | 4 |
| QSFP+ Ports | 2 | 2 |
| Switching Capacity | 336 Gbit/s | 288 Gbit/s |
| Forwarding Rate | 252 Mpps | 215 Mpps |
| Maximum power consumption | 103W | 75W |
