J8177D, Aruba 1G SFP Transceiver, RJ45, 100m, Cat5e

Price Negotiable

Price: Negotiable

MOQ: 1

Delivery Time: 2-3 days

Brand: Aruba

Product Description

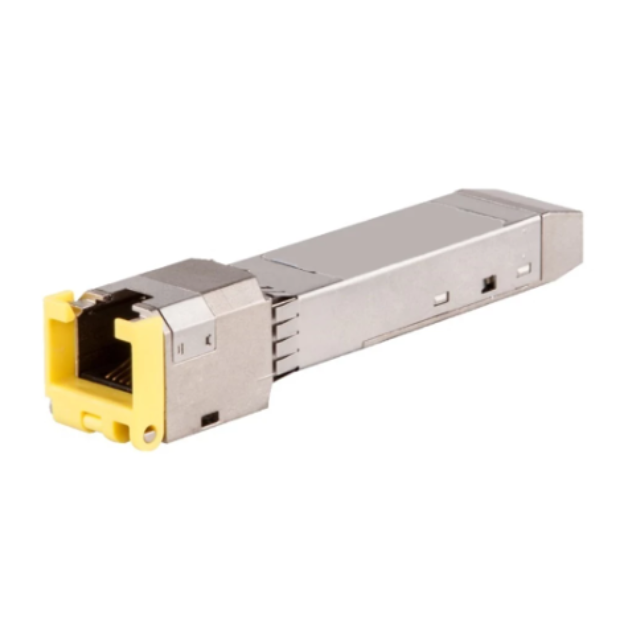

Aruba J8177D 1G SFP Overview

The J8177D Aruba 1G SFP is a reliable and high-performance transceiver module designed by Aruba. It features an RJ45 connector and supports 1G speeds over Cat5e cables up to 100 meters. Ideal for various networking environments, this device ensures seamless connectivity and exceptional data transmission, making it a valuable addition to any IT infrastructure.

Supported Devices

Figure 1 shows the front panel of J8177D.

Quick Specs

Table 1 shows the Quick Specs.

Brand	Aruba
Model	J8177D
Interface	RJ45
Transmission Speed	1G
Cable Type	Cat5e

Compare to Similar Items

Model	Differences
J9152D Aruba 10G SFP+ LR	Supports 10G speed and a longer reach of up to 10 km.
J9150D Aruba 10G SFP+ SR	Optimized for short-range connections, up to 300 meters on OM3 multimode fiber.
J4858D Aruba 1G SFP SX	Supports Gigabit speed with multimode fiber, up to 550 meters.

Aruba J8177D 1G SFP Specification

J8177D Aruba 1G SFP Specifications
Brand	Aruba
Model	J8177D
Type	SFP Transceiver
Data Rate	1 Gbps
Form Factor	SFP (Small Form-Factor Pluggable)
Connector	RJ45
Cable Type	Cat5e
Maximum Distance	100 meters
Wavelength	N/A
Hot Swappable	Yes
Compatibility	Aruba networking devices
Operating Temperature Range	0 to 70°C (32 to 158°F)
Storage Temperature Range	-40 to 85°C (-40 to 185°F)
Humidity Range	5% to 95% (non-condensing)
Power Consumption	<1W
EMI/EMC Compliance	Yes
MTBF	Over 1,000,000 hours
RoHS Compliant	Yes
Dimensions	13.4 mm x 56.5 mm x 8.5 mm
Warranty	Limited Lifetime
Application	Data Center, Enterprise
