J9150D, Aruba 10G SFP+ LC SR Transceiver, 10G SFP+/LC/300m MMF
Aruba J9150D Overview
J9150D is an Aruba 10G SFP+ LC SR 300m MMF XCVR.
Supported Devices

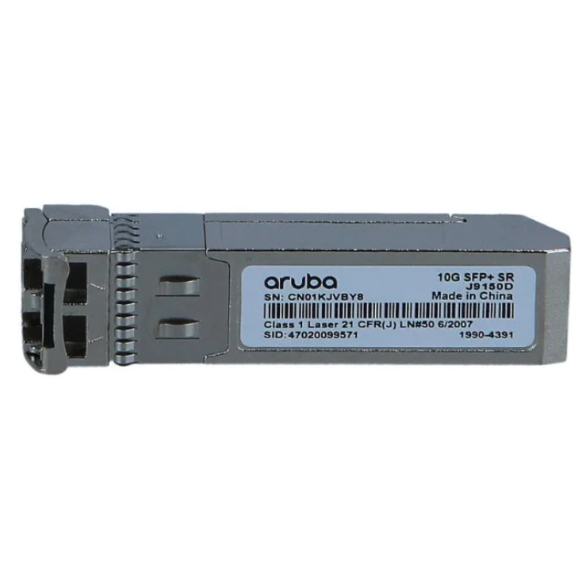

Figure 1 shows the front panel of J9150D.
Table 1 shows the Quick Specs.
|
Product Name (SKU) |
DOM - Digital Optical Monitoring (4x4 part #) |
Central we (nm) |
Fiber mode |
Fiber diameter (µm) |
Bandwidth (MHz*km) |
Transmis-ion distance |
|
Aruba 10G SFP+ LC SR 300m MMF XCVR (J9150D) |
Yes (1990-4391, 1990-4175) |
850 |
MMF |
50/125 |
4700 (OM4) |
400 m (1312.34 ft) |
|
2000 (OM3) |
300 m (984.25 ft) |
|||||
|
500 (OM2) |
82 m (269.03 ft) |
|||||
|
400 |
66 m (216.54 ft) |
|||||
|
62.5/125 |
200 (OM1) |
33 m (108.27 ft) |
||||
|
160 |
26 m (85.30 ft) |
Aruba J9150D Specification
J9150D Specification |
|
|
Product name (SKU) |
Aruba 10G SFP+ LC SR 300m MMF XCVR (J9150D) |
|
DOM - Digital Optical Monitoring (4x4 part #) |
Yes (1990-4391 & 1990-4175) |
|
Central wl (nm) |
850 |
|
Fiber mode |
MMF |
|
Fiber diameter (µm) | Modal bandwidth (MHz*km) | Transmission distance |
50/125 | 4700 (OM4), 2000 (OM3), 500 (OM2), 400 | 400 m (1312.34 ft), 300 m (984.25 ft), 82 m (269.03 ft), 66 m (216.54 ft) |
|
62.5/125 | 200 (OM1), 160 | 33 m (108.27 ft), 26 m (85.30 ft) |
|
|
Optical parameters (dBm) Transmit power |
–7.3 to –1 |
|
Optical parameters (dBm) Receive power |
–9.9 to +0.5 |
|
Product dimensions (H x W x D) |
0.6 x 2.2 x 0.5 in |
|
Weight |
0.1 lb (0.05 kg) |
