JL255A, Aruba 2930F Switch, 24xGE PoE+/4xSFP+/370W PoE Budget
Price:
Negotiable
MOQ:
1
Delivery Time:
2-3 days
Brand:
Aruba
Product Description
Aruba JL255A Overview
Introducing the Aruba 2930F 24G PoE+ 4SFP+ Switch, the ideal networking solution for businesses seeking reliable and high-performance connectivity. This switch offers a range of advanced features and functions to streamline network operations and optimize performance.

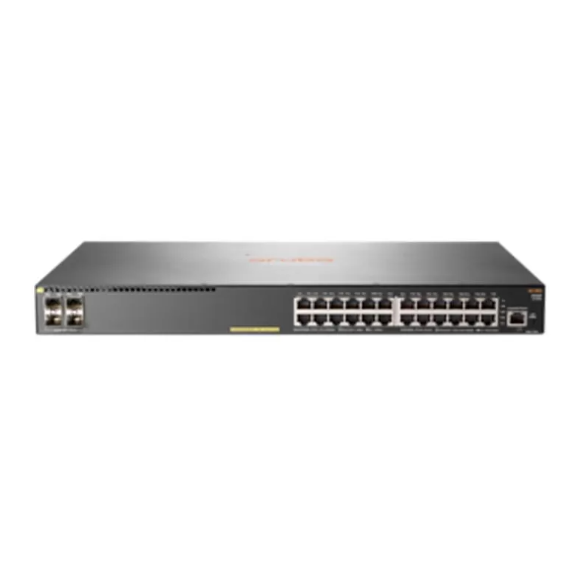

Figure 1 shows the front panel of JL255A.
![]()
-
Quick Specs
Table 1 shows the Quick Specs.
| Ports | 24 x Gigabit Ethernet, 4 x SFP+ |
| Power over Ethernet | Yes |
| Compatible Devices | Desktop |
| Number of Ports | 24 |
| Management Interface | Web-based GUI, CLI, SNMP |
Aruba JL255A Specification
JL255A Specifications |
|
| Product Model | Aruba 2930F 24G PoE+ 4SFP+ Switch |
| Product Brand | Aruba |
| Number of Ports | 24 |
| Compatible Devices | Desktop |
| Dimensions(LxWxH) | 12 x 2 x 17 inches |
| Quality of Service (QoS) Support | Yes |
| Access Control Lists (ACL) Support | Yes |
| Differentiator | Popular Aruba 28-port Gig + 10G access switch with 370 Watts PoE+ power. This model has 24x 10/100/1000 PoE+ ports and 4x 10G / 1G SFP+ transceiver slots for uplink connectivity. PoE+ is supported with a power budget of 370 Watts. |
| ports | (24) RJ-45 autosensing 10/100/1000 PoE+ ports (4) SFP+ 1/10GbE ports PHY-less |
| Memory and processor | Dual Core ARM Cortex A9 @ 1016 MHz 1 GB DDR3 SDRAM Packet buffer size: 12.38 MB 4.5MB Ingress/7.785 Egress 4 GB eMMC |
| Latency | 1000 Mb Latency: < 3.8 µs 10 Gbps Latency: < 1.6 µs |
| Throughput | up to 95.2 Mpps |
| Switching capacity | 128 Gbps |
| PoE capability | 370 W PoE+ |
| Management features | Aruba AirWave Central Network Management IMC - Intelligent Management Center Command-line interface Web browser Configuration menu SNMP manager Telnet RMON1 FTP Out-of-band management (serial RS-232C or micro USB) |
| Input voltage | 100 - 127 / 200 - 240 VAC, rated |
| Operating humidity range | 15 to 95% @ 104°F (40°C) (noncondensing) |
| Power consumption | 445 W (maximum) |
| Heat dissipation | 258 BTU/hr (272.2 kJ/hr) |
| Product dimensions (metric) | 4.39 x 44.25 x 30.42 cm |
| Weight | 3.9 kg |
