HPE JL484A Aruba 25G Sfp28 Lc Sr 100m Mmf Transceiver REF
Price:
Negotiable
MOQ:
1
Delivery Time:
2-3 days
Brand:
Aruba
Product Description
Aruba J4858D Overview
This fiber optic transceiver is the direct equivalent to HPE® JL484A for 25Gbps connectivity up to 100m (328ft) over LC-terminated Multimode Fiber (MMF) cable. The optical module has been programmed and tested for seamless integration with HPE® switches and routers to ensure compatibility and reliability.

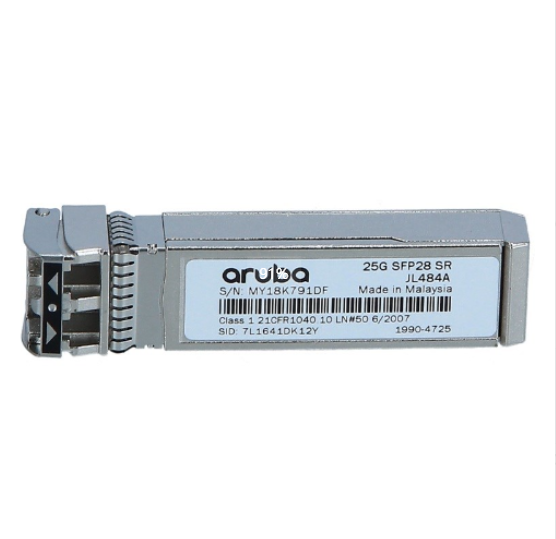

Figure 1 shows the front panel of JL484A .
Table 1 shows the comparison.
Aruba JL484A Specification
| Media Type: | Multi-Mode Fiber (MMF) |
| TX Wavelength: | 850 nm. |
| RX Wavelength: | 850 nm. |
| Minimum Optical Budget: | 2.6 dB |
| Maximum Distance: | 100m |
| Supported Data Rate: | 8.5-28.1 Gbps |
| Supported Applications: | 25G Ethernet (25.78Gbps), 10G Ethernet (10.31Gbps) |
| DDM/DOM: | Supported |
| Temperature Range: | Standard 0°-70°C |
| Connectors: | Double LC |
| Tx Wavelength Bandwidth: | 20 nm (840-860 nm) |
| Rx Wavelength Bandwidth: | 20 nm (840-860 nm) |
| Minimum Transmitting Power: | -8.4 dBm |
| Maximum Transmitting Power: | 2.4 dBm |
| Receiver Sensitivity: | -11 dBm |
| Receiver Overload: | 2.4 dBm |
| Transmitter Type: | VSCEL Laser |
| Receiver Type: | PIN photodiode |
| Power: | +3.3V single power supply |
| Chipset: | II-VI, Macom, Neo, Oclaro, Renesas Electronics, MAXIM, SEMTECH, Sumitomo |
| Compliance: | IEEE 802.3by, RoHS-6, SFF-8432, CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant, SFF-8402, SFF-8431, SFF-8472, SFP+ MSA |
