HPE JL486A Aruba 25G SFP28 LC LR 10Km SMF Transceiver NEW
Price:
Negotiable
MOQ:
1
Delivery Time:
2-3 days
Brand:
Aruba
Product Description
Aruba JL486A Overview
HPE JL486A Aruba - Sfp28 Transceiver Module - 25 Gigabit Ethernet - 25gbase-lr - Lc Single-mode - Up To 6.2 Miles - For HPE Aruba 8325-48y8c, Cx 8360-12c V2, 8360-16y2c V2, 8360-48xt4c V2.

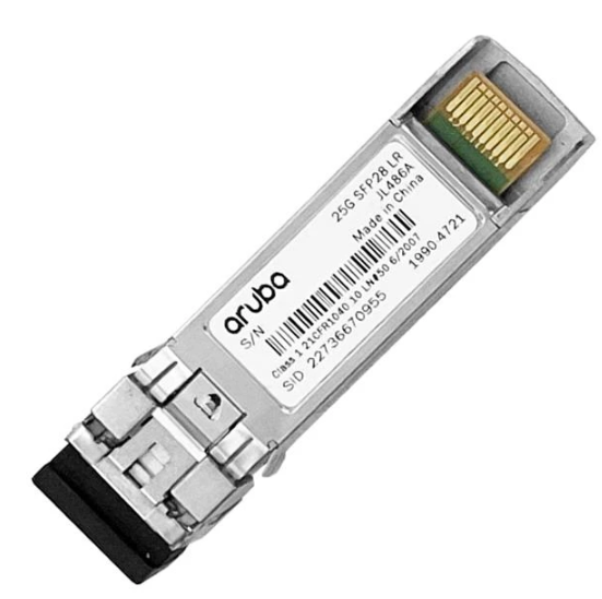

Figure 1 shows the front panel of JL486A .
Table 1 shows the comparison.
Aruba JL486A Specification
| HPE Aruba | JL486A | Vendor Name | FS |
| Form Factor | SFP28 | Max Data Rate | 25.78Gbps |
| Wavelength | 1310nm | Max Cable Distance | 10km |
| Connector | Duplex LC | Media | SMF |
| Transmitter Type | DFB 1310nm | Receiver Type | PIN |
| TX Power | -7~2dBm | Minimum Receiver Power | <-12dBm |
| Power Budget | 5dB | Receiver Overload | 2dBm |
| Power Consumption | <1.2W | Extinction Ratio | 3.5dB |
| CDR | TX and RX | Inbuilt FEC | Yes |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) | Protocols | MSA Compliant, CPRI, eCPRI |
| Core Size | G.652 | Packaging Technology | BOX Packaging |
