JL725B, HPE Aruba 6200F Switch, 24xGigabit Ports/4xSFP+/370W PoE
Price:
Negotiable
MOQ:
1
Delivery Time:
2-3 days
Brand:
Aruba
Product Description
Aruba JL725B Overview
Aruba's JL725B, also known as the HPE ANW 6200F 24G C4 4SFP+370W Switch, is a high-performing, versatile network switch. It offers robust connectivity solutions for enterprise environments, providing high-speed data transfer and reliable connectivity. Ideal for IT professionals and network engineers, this switch is designed to optimize performance in corporate offices, data centers, and high-traffic network environments.

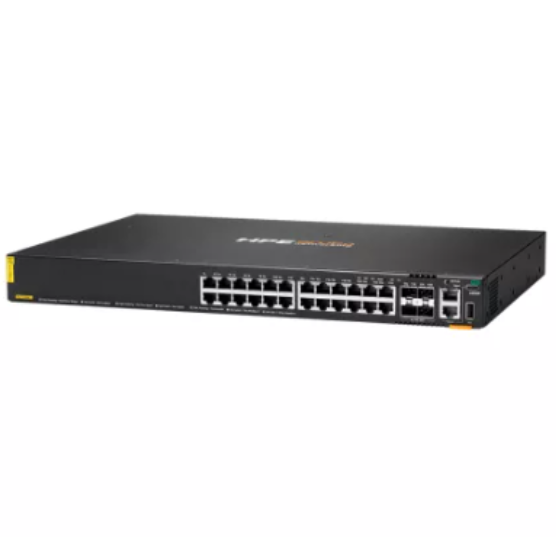

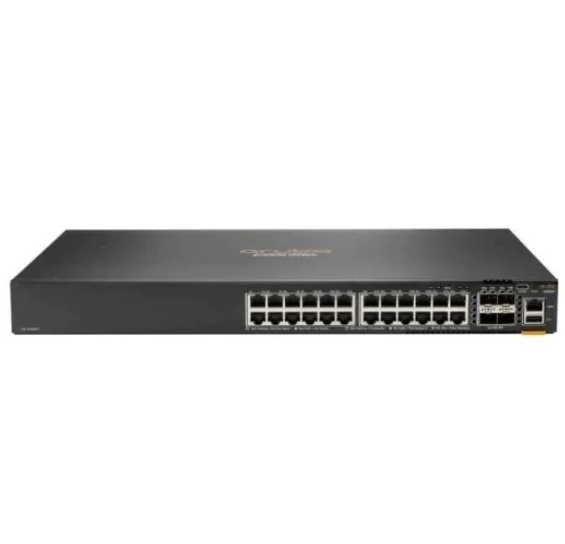

Figure 1 shows the front panel of JL725B.
![]()
-
Aruba JL725B Product Highlights
- ● 24 Gigabit Ethernet Ports
- ● 370W PoE Power Capacity
- ● Advanced Network Security
- ● 4 SFP+ Uplinks
- ● Scalability Options
Product Features Comparison
| Model | Aruba JL725B | Cisco SG350-28 | HP 1920-24G | Netgear GS728TP | D-Link DGS-1210 | TP-Link T1600G-28PS | Juniper EX3300 |
|---|---|---|---|---|---|---|---|
| Ports | 24 | 28 | 24 | 28 | 24 | 24 | 24 |
| SFP+ Uplinks | 4 | 2 | 4 | 4 | 4 | 4 | 4 |
| PoE Power | 370W | 195W | 370W | 192W | 193W | 384W | 0W |
| Security Features | Advanced | Basic | Moderate | Basic | Advanced | Basic | Advanced |
| Management | Smart Managed | Layer 3 | Smart Managed | ProSAFE Plus | Smart Managed | Smart Managed | Advanced |
| Scalability | High | Low | Moderate | Moderate | Moderate | High | High |
Aruba JL725B Specification
JL725B Specifications |
|
| Weight | 4.39 kg (9.68 lbs) |
| Dimensions (W x D x H) | 44.25 cm x 28.4 cm x 4.37 cm (17.42 in x 11.2 in x 1.72 in) |
| Operating temperature | 32°F to 113°F (0°C to 45°C) up to 5000 ft derate -1°C for every 1000 ft from 5000 ft to 10000 ft |
| Operating relative humidity | 5% to 95% @ 104°F (40°C) non-condensing |
| Non-operating temperature | -40°F to 158°F (-40°C to 70°C) up to 15000 ft |
| Non-operating storage relative humidity | 5% to 95% @ 149°F (65°C) non-condensing |
| Max operating altitude | 10000 feet (3.05 km) Max |
| Max non-operating altitude | 15000 feet (4.57 km) Max |
| AC voltage |
100-120V 200-240V |
| Maximum current |
5.2A 2.6A |
| Frequency range | 50/60 Hz |
| Maximum power | 500W |
| Acoustics | Sound Power (LWAd) 4.9 Bel Sound Pressure (LpAm) (Bystander) 32.5 dB |
| Safety-World Wide | IEC 60950-1:2005 + A1:2009 + A2:2013 with all known National Deviations IEC 62368-1:2014 2nd ed. with all known National Deviations IEC 62368-1:2018 3rd Ed. with all known National Deviations |
| RoHS | EN IEC 63000:2018 |
