R3V36A, Aruba AP-503H Access Point, 5GHz/2.4GHz/Max Data Rate
Aruba R3V36A Overview
The Aruba 500H Series Hospitality Access Points provide high-performance wireless and wired connectivity for hospitality organizations experiencing growing numbers of mobile, IoT, and mobility requirements.
Supported Devices

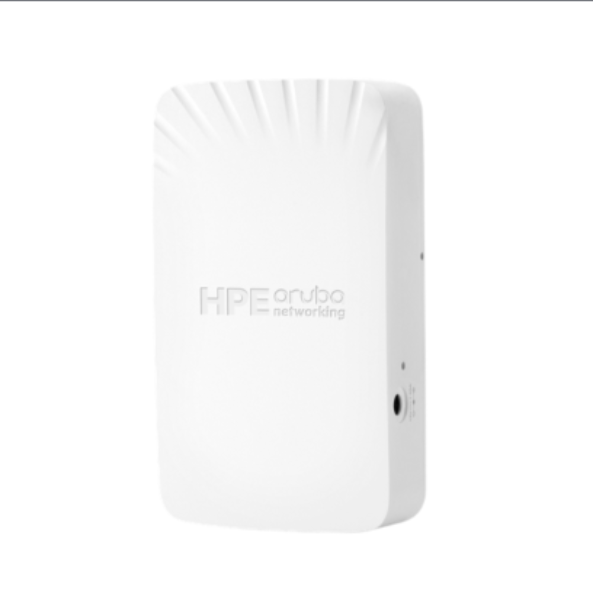

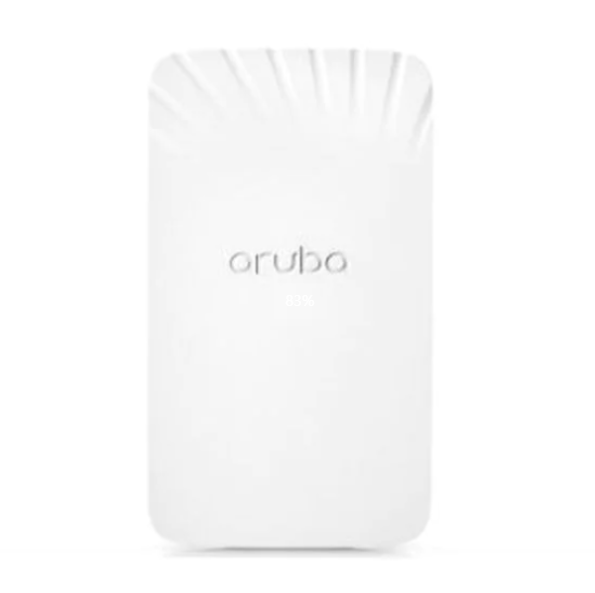

Figure 1 shows the front panel of R3V36A.
Quick Specs
Table 1 shows the Quick Specs.
|
Product Code |
R3V36A |
|
Ports |
(1) 10/100/1000BASE-T RJ-45 port, auto-sensing link speed and MDI/MDX. (4) 10/100/1000BASE-T (RJ-45) ports, auto-sensing link speed and MDI/MDX |
|
Input voltage |
IEEE 802.3af Class 3 PoE, or direct DC power (via optional power supply) |
|
Power Consumption |
50W max |
|
Radio coverage |
5GHz radio: Two spatial stream (SU/MU) MIMO for up to 1.2Gbps wireless data rate (HE80) 2.4GHz radio: Two spatial stream (SU/MU) MIMO for up to 287Mbps wireless data rate (HE20) |
|
Product Dimensions (metric) |
150 x 86 x 47 mm |
Compare to Similar Items
Table 2 shows the comparison of R3V36A.
|
Module |
R3V36A |
R7J27A |
|
Ports |
(1) 10/100/1000BASE-T RJ-45 port, auto-sensing link speed and MDI/MDX. (4) 10/100/1000BASE-T (RJ-45) ports, auto-sensing link speed and MDI/MDX |
E0, E1: Two Ethernet wired network ports (RJ-45) |
|
Input voltage |
IEEE 802.3af Class 3 PoE, or direct DC power (via optional power supply) |
12 Vdc (+/- 5%) or 48 Vdc (nominal) POE |
|
Power Consumption |
50W max |
23.8W worst case (POE powered), 20.7W worst case (DC). Excludes power needed to supply up to 5W to an attached USb device. |
|
Radio coverage |
5GHz radio: Two spatial stream (SU/MU) MIMO for up to 1.2Gbps wireless data rate (HE80) 2.4GHz radio: Two spatial stream (SU/MU) MIMO for up to 287Mbps wireless data rate (HE20) |
Indoor, tri radio, 2.4GHz, 5GHz and 6GHz (concurrent) 802.11ax 2x2 MIMO |
|
Product Dimensions (metric) |
150 x 86 x 47 mm |
220mm (W) x 220mm (D) x 50mm (H) |
Aruba R3V36A Specification
R3V36A Specification |
|
|
Ports |
(1) 10/100/1000BASE-T RJ-45 port, auto-sensing link speed and MDI/MDX. (4) 10/100/1000BASE-T (RJ-45) ports, auto-sensing link speed and MDI/MDX |
|
Mounting |
Optional mounting kits: Using one of the (separate orderable) mount kits, the AP can be attached to a single or dual gang wall-box, directly to a wall, or desk mounted. |
|
Input voltage; |
IEEE 802.3af Class 3 PoE, or direct DC power (via optional power supply) |
|
Power Consumption |
50W max |
|
Certifications |
Wi-Fi Alliance Wi-Fi CERTIFIED™ a, b, g, n, ac Wi-Fi Alliance Wi-Fi CERTIFIED™ 6 (ax) Wi-Fi Alliance WPA, WPA2 and WPA3 – Enterprise with CNSA option, Personal (SAE), Enhanced Open ( OWE) Wi-Fi Alliance WMM, WMM-PS, Wi-Fi Vantage, Wi-Fi Agile Multiband Wi-Fi Alliance Passpoint (release 2) Ethernet Alliance (POE, PD device, class 6) |
|
Regulatory |
FCC/ISED CE Marked RED Directive 2014/53/EU EMC Directive 2014/30/EU Low Voltage Directive 2014/35/EU IEC/EN 60950 EN 60601-1-1, EN60601-1-2 IEC/EN 62368-1 |
|
Wi-Fi antenna |
Two integrated semi-directional antennas for 2x2 MIMO with peak single antenna gain of 5.2dBi in 2.4GHz and 5.4dBi in 5GHz. Built-in antennas are optimized for vertical wall or desk mounted orientation of the AP. Combining the patterns of each of the antennas of the MIMO radios, the peak gain of the combined, average pattern is 1.7dBi in 2.4GHz and 5.0dBi in 5GHz. |
|
Radio coverage |
5GHz radio: Two spatial stream (SU/MU) MIMO for up to 1.2Gbps wireless data rate (HE80) 2.4GHz radio: Two spatial stream (SU/MU) MIMO for up to 287Mbps wireless data rate (HE20) |
|
Product Dimensions (metric) |
150 x 86 x 47 mm |
