R4W43A, Aruba 560 Series Outdoor Access Point, Weatherproof, Wi-Fi 6, Outdoor rated
Aruba R4W43A Overview
Weatherproof and temperature hardened, Aruba 560 Series Outdoor Access Points (APs), R4W43A deliver cost-effective Wi-Fi 6 wireless connectivity in outdoor and environmentally challenging locations.
Supported Devices

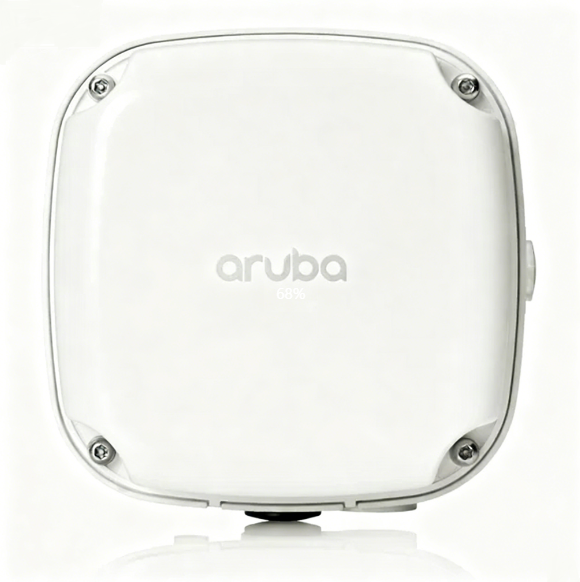

Figure 1 shows the front panel of R4W43A.
Quick Specs
Table 1 shows the Quick Specs.
|
Product Code |
R4W43A |
|
Dimensions |
16.5 cm (W) x 16.5 cm (D) x 11 cm (H) 6.5” (W) x 6.5” (D) x 4.3” (H) |
|
Maximum (worst-case) power consumption |
15.6W |
|
Maximum (worst case) power consumption in idle mode |
4.2W |
|
Maximum (worst case) power consumption in deep-sleep mode |
1.7 |
|
Power over Ethernet (PoE+) |
802.3at-compliant |
|
Operating temperature |
-40° C to +55° C (-40° F to +140° F) with full solar loading |
|
Operating humidity |
5% to 95% non-condensing internal |
Compare to Similar Items
Table 2 shows the comparison of R3V36A.
|
Module |
R4W43A |
R4W39A |
|
Maximum (worst-case) power consumption |
15.6W |
PoE powered (dual ports): 32.0W PoE powered (single port, full function): 26.1W |
|
Maximum (worst case) power consumption in idle mode |
4.2W |
14.0W (single PoE) or 16.0W (dual PoE) |
|
Maximum (worst case) power consumption in deep-sleep mode |
1.7W |
2.9W (single PoE) or 3.9W (dual PoE) |
|
Dimensions |
16.5 cm (W) x 16.5 cm (D) x 11 cm (H) 6.5” (W) x 6.5” (D) x 4.3” (H) |
230mm (W) x 220mm (D) x 140mm (H) / 9.0" (W) x 8.7" (D) x 5.6" (H) |
|
Operating temperature |
-40° C to +55° C (-40° F to +140° F) with full solar loading |
-40°C to +65°C / -40°F to +149°F with full solar loading |
|
Operating humidity |
5% to 95% non-condensing internal |
5% to 93% non-condensing internal |
Aruba R4W43A Specification
R4W43A Specification |
|
|
Hardware Variants |
Built-in Omni Directional Antennas 5 GHz Antennas 5.4 dBi 2.4 GHz Antennas 3.2 dBi BLE/802.15.4 Antennas 3.3d Bi |
|
Wi-Fi Radio Specifications |
|
|
AP type |
Outdoor Hardened, Wi-Fi 6 dual radio, 5 GHz 2x2 MIMO and 2.4 GHz 2x2 MIMO Software-configurable dual radio supports 5 GHz (Radio 0) and 2.4 GHz (Radio 1) |
|
5GHz
|
Two spatial stream Single User (SU) MIMO for up to 1.2 Gbps wireless data rate with individual 2SS HE80 802.11ax client devices, or with two 1SS HE80 802.11ax MU-MIMO capable client devices simultaneously |
|
2.4GHz
|
Two spatial stream Single User (SU) MIMO for up to 574 Mbps (287 Mbps) wireless data rate with individual 2SS HE40 (HE20) 802.11ax client devices or with two 1SS HE40 (HE20) 802.11ax MU-MIMO capable client devices simultaneously |
|
Available channels |
Dependent on configured regulatory domain |
|
Supported radio technologies
|
802.11b: Direct-sequence spread-spectrum (DSSS) 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM) 802.11ax: Orthogonal frequency-division multiple access (OFDMA) with up to 16 resource units (RU) |
|
Supported modulation types
|
802.11b: BPSK, QPSK, CCK 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM (proprietary extension) 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM (proprietary extension) 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM |
|
802.11n high-throughput (HT) support |
HT 20/40 |
|
802.11ac very high throughput (VHT) support |
VHT 20/40/80 |
|
802.11ax high efficiency (HE) support |
HE20/40/80 |
|
Transmit power |
Configurable in increments of 0.5 dBm |
|
Maximum (conducted) transmit power (limited by local regulatory requirements)
|
2.4 GHz band: +23 dBm per chain, +26 dBm aggregate (2x2) 5 GHz band: +23 dBm per chain, +26 dBm aggregate (2x2) Note: conducted transmit power levels exclude antenna gain. |
|
Maximum EIRP (limited by local regulatory requirements):
|
2.4 GHz band: 565: 29.2 dBm EIRP 567: 33 dBm EIRP 5 GHz band: 565: 31.4 dBm EIRP 567: 32.7 dBm EIRP |
|
Power |
|
|
Maximum (worst-case) power consumption |
15.6W |
|
Maximum (worst case) power consumption in idle mode |
4.2W |
|
Maximum (worst case) power consumption in deep-sleep mode |
1.7W |
|
Power over Ethernet (PoE+) |
802.3at-compliant |
|
Mechanical |
|
|
Dimensions |
16.5 cm (W) x 16.5 cm (D) x 11 cm (H) 6.5” (W) x 6.5” (D) x 4.3” (H) |
|
Environmental |
|
|
Operating temperature |
-40° C to +55° C (-40° F to +140° F) with full solar loading |
|
Operating humidity |
5% to 95% non-condensing internal |
|
Storage and transportation temperature: |
-40° C to +70° C (-40° F to +158° F) |
