Huawei S-SFP-FE-LH40-SM1310 Optical Transceiver 100 Mbit/s 1310nm 40 km SFP Module
Price:
$200-$235
MOQ:
1
Delivery Time:
1-2days
Brand:
HUAWEI
Product Description
Huawei S-SFP-FE-LH40-SM1310 Overview
Huawei S-SFP-FE-LH40-SM1310 is an Optical Transceiver. It’s a Single-mode Module.
Quick Specs
Table 1 shows the Quick Specs.
| Product Code | S-SFP-FE-LH40-SM1310 |
| Transceiver type | eSFP |
| Transmission speed | 100 Mbit/s |
| Center wavelength (nm) | 1310 |
| Standard compliance | 100base-LX |
| Connector type | LC |
The Supported Switches

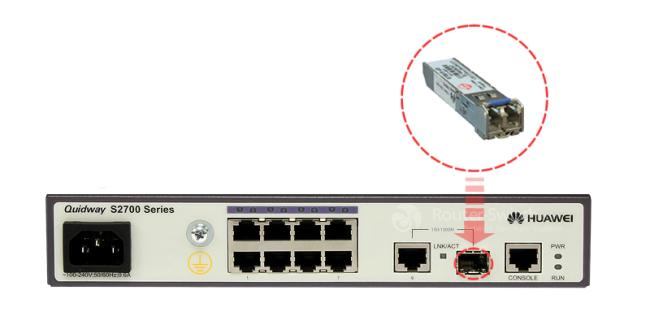

Figure 1. S-SFP-FE-LH40-SM1310 can be installed in the switch’s SFP slot.
Table 2 shows the Huawei hot switches which support S-SFP-FE-LH40-SM1310.
| Model | Description |
| S2700-26TP-EI-DC | 24 x Ethernet 10/100 ports, 2 dual-purpose 10/100/1000 or SFP, DC -48V |
| S2700-52P-EI-AC | 48 x Ethernet 10/100 ports, 4 Gig SFP, AC 110/220V |
| S2700-26TP-EI-AC | 4 x Ethernet 10/100 ports, 2 dual-purpose 10/100/1000 or SFP, AC 110/220V |
| S2700-9TP-PWR-EI | 8 x Ethernet 10/100 ports, PoE+, 1 dual-purpose 10/100/1000 or SFP, AC 110/220V |
| S2700-26TP-PWR-EI | 24 x Ethernet 10/100 ports, 2 dual-purpose 10/100/1000 or SFP, PoE+, without power module |
| S2700-9TP-EI-AC | 8 x Ethernet 10/100 ports, 1 dual-purpose 10/100/1000 or SFP, AC 110/220V |
| S3700-28TP-EI-AC | 24 x Ethernet 10/100 ports, 2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP, AC 110/220V |
| S3700-28TP-SI-AC | 24 x Ethernet 10/100 ports, 2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP, AC 110/220V |
| S3700-28TP-PWR-SI | 24 x Ethernet 10/100 PoE+ ports,2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP,with 500W AC power supply |
Compare to Similar Items
Table 3 shows the comparison of SFP-FE-SX-MM1310 and S-SFP-FE-LH40-SM1310.
| Item | SFP-FE-SX-MM1310 | S-SFP-FE-LH40-SM1310 |
| Transceiver form factor | SFP | eSFP |
| Transmission speed | Fast Ethernet | 100 Mbit/s |
| Center wavelength (nm) | 1310 | 1310 |
| Standard compliance | 100base-FX | 100base-LX |
| Connector type | LC | LC |
|
Applicable cable and maximum transmission distance |
Multimode fiber (50 μm or 62.5 μm diameter): 2 km | Single-mode fiber: 40 km |
| Transmit power (dBm) | -19.0 to -14.0 | -5.0 to 0 |
| Maximum receiver sensitivity (dBm) | -30.0 | -37.0 |
| Overload power (dBm) | -14.0 | -10.0 |
| Extinction ratio (dB) | 10 | 10.5 |
| Operating temperature | 0°C to 70°C (32°F to 158°F) | 0°C to 70°C (32°F to 158°F) |
| Net Dimension(D x W x H mm) | 145 x 80 x 35 | 110 x 70 x 37 |
Huawei S-SFP-FE-LH40-SM1310 Specification
S-SFP-FE-LH40-SM1310 Specification |
|
| Transceiver type | eSFP |
| Transmission speed | 100 Mbit/s |
| Center wavelength (nm) | 1310 |
| Standard compliance | 100base-LX |
| Connector type | LC |
| Applicable cable and maximum transmission distance | Single-mode fiber: 40 km |
| Transmit power (dBm) | -5.0 to 0 |
| Maximum receiver sensitivity (dBm) | -37.0 |
| Overload power (dBm) | -10.0 |
| Extinction ratio (dB) | 10.5 |
| Operating temperature | 0°C to 70°C (32°F to 158°F) |
| Net Dimension(D x W x H mm) | 110 x 70 x 37 |
