CS-KIT-MINI-K9, Cisco Webex Room Kit Mini, Video Conferencing Terminal, 4K Camera, HDMI Input, Integrated Microphone

Price Negotiable

Price: Negotiable

MOQ: 1

Delivery Time: 2-3 days

Brand: Cisco

Product Description

Cisco CS-KIT-MINI-K9 Overview

The Cisco Webex Room Kit Mini (CS-KIT-MINI-K9) is an optimal solution for small meeting rooms. Designed for enriching video conferencing experiences, it offers advanced features and seamless integration with Webex applications. With upfront pricing available, this device is a cost-effective way to bring professional-grade collaboration into compact spaces.

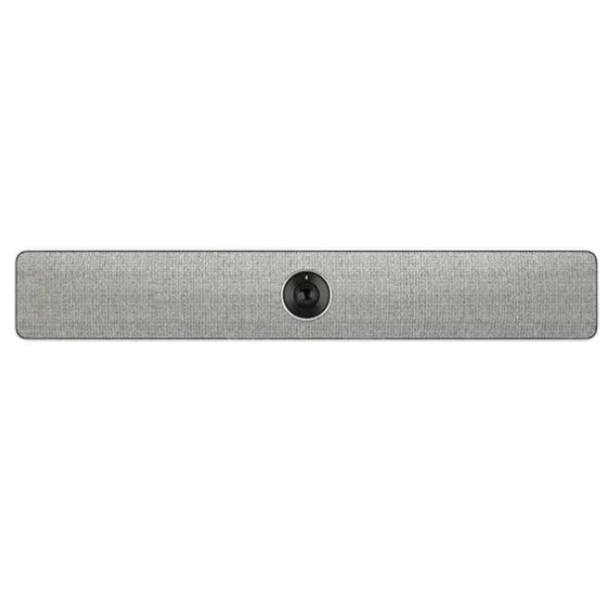

Figure 1 shows the front panel of CS-KIT-MINI-K9.

Quick Specs.

Table 1 shows the Quick Specs.

Brand Cisco

Product Name CS-KIT-MINI-K9

Video Resolution 4K

Audio Features Beamforming Microphone Array

Connection Types HDMI, USB, Ethernet

Supported Options

Touch Controller	CS-TOUCH10
External Microphone	CTS-MIC-TABL60
Webex Board Integration	CS-BOARD55S

Compare to Similar Items

Model	Key Differences
CS-KITP60-K9	Includes Precision 60 Camera; designed for larger rooms
CS-KITPLUS-K9	Includes additional touch controller; more suitable for medium-sized rooms
CS-DX80-K9	All-in-one desktop collaboration device with integrated display

Cisco CS-KIT-MINI-K9 Specification

CS-KIT-MINI-K9 Specification
Software compatibility	● Cisco Collaboration Endpoint Software Version 9.14.5 or later, and Cisco Webex RoomOS
Optional hardware components	● HDMI presentation cable 8 m/26.2 ft ● 4 m/13 ft USB cable for USB pass-through feature ● Screen Mount Kit
Bandwidth	● Up to 6 Mbps point to point
Minimum bandwidth for resolution/frame rate	H.264: ● 720p30 from 768 kbps ● 720p60 from 1152 kbps ● 1080p30 from 1472 kbps ● 1080p60 from 2560 kbps
Firewall traversal	● Cisco Expressway™ technology ● H.460.18, H.460.19 firewall traversal
Video standards	● H.264
Video inputs	● One HDMI input supports formats up to maximum 4K (3840 x 2160) at 30 fps, including HD1080p60 ● Consumer Electronics Control (CEC) 2.0
Video outputs	● 1 HDMI output supports formats up to 3840 x 2160p60 (4Kp60) ● Live video resolutions (encode and decode) up to 1920 x 1080p30 and p60 (HD1080p) ● Consumer Electronics Control (CEC) 2.0
Audio standards	● G.711, G.722, G.722.1, G.729, AAC-LD, and Opus
Audio features	● High-quality 20 kHz audio ● Automatic Gain Control (AGC) ● Automatic noise reduction ● Active lip synchronization
Audio inputs	● One audio in from HDMI ● Internal microphones ● Bluetooth ® - Not available on Non Radio Version *
Speakers (integrated)	● High-quality speakers: full range speaker plus dual woofers in balanced configuration ● Frequency response 100 Hz to 20 kHz ● Amplifier power: 24W ● Max output level SPL 84 dB
MultiSite	● H.239 (H.323) dual stream ● Binary Floor Control Protocol (BFCP) (SIP) dual stream ● Supports resolutions up to 3840 x 2160p5
Dual stream	● One HDMI input supports formats up to maximum 4K (3840 x 2160) at 30 fps, including HD1080p60 ● Consumer Electronics Control (CEC) 2.0
Wireless sharing	● Webex app (up to 3840 x 2160p5) ● Cisco Intelligent Proximity client (up to 1920 x 1080p5) ● Miracast (1080p30) – Not available on Non radio version
Multipoint support	● 4-way embedded SIP/H.323 conferencing capability with MultiSite option
MultiSite features (embedded multipoint)*	● Adaptive SIP/H.323 MultiSite: ◦ 3-way resolution up to 1080p30 + content up to 1080p15 ◦ 4-way resolution up to 720p30 + content up to 1080p15 ● Full individual audio and video transcoding ● H.323/SIP/VoIP in the same conference ● Support for presentation (H.239/BFCP) from any participant at resolutions up to 3840 x 2160p5 ● Best impression (automatic continuous presence layouts) ● Encryption and dual stream from any site
Protocols	● H.323 ● SIP ● Cisco Webex
Embedded encryption	● H.323 and SIP point to point ● Standards-based: H.235 v3 and Advanced Encryption Standard (AES) ● Automatic key generation and exchange
IP network features	● DNS lookup for service configuration ● Differentiated services (Quality of Service [QoS]) ● IP-adaptive bandwidth management (including flow control) ● Automatic gatekeeper discovery ● Dynamic playout and lip-sync buffering ● H.245 Dual-Tone Multifrequency (DTMF) tones in H.323 ● RFC 4733 DTMF tones in SIP ● Date and time support using Network Time Protocol (NTP) ● Media adaptation and resilience ● Uniform Resource Identifier (URI) dialing ● Dynamic Host Configuration Protocol (DHCP) ● 802.1X network authentication ● 802.1Q Virtual LAN ● 802.1p (QoS and Class of Service [CoS])
Call control	● Cisco Unified Communications Manager (Unified CM) ◦ Native registration with Unified CM ◦ Requires Unified CM Version 9.1(2) or later with device pack Room Kit Mini ● Cisco Expressway ◦ Native registration with Expressway ● Cisco Webex Service ● Third-party H.323 gatekeepers and standards-based SIP proxies
IPv6 network support	● Single call stack support for both H.323 and SIP ● Dual-stack IPv4 and IPv6 for DHCP, SSH, HTTP, HTTPS, DNS, DiffServ ● Support for both static and automatic IP configuration (stateless address auto configuration)
Security features	● Management using HTTPS and SSH ● IP administration password ● Menu administration password ● Disable IP services ● Network settings protection ● Privacy cover
Network interfaces	● One Ethernet (RJ-45) 10/100/1000 for LAN ● One Ethernet (RJ-45) for Cisco Touch 10 direct pairing ● Wi-Fi 802.11a/b/g/n/ac 2.4 GHz/5 GHz - not available in non-radio versions Note: Due to compliance regulations, it is required that 802.11d is enabled in the access point for the product to operate properly within 5725 MHz – 5875 MHz. Using a Wi-Fi connection is a flexible option, however an Ethernet connection is always preferred for high performance.
USB passthrough	● Ability to join any web conferencing service and share content using the camera, microphones and speakers of Room Kit Mini with a USB cable connected with the external monitor and an HDMI cable connected with the computer ● 720p video resolution
Other interfaces	● 1 USB 2.0 port type A ● 1 USB 2.0 port type C ● 1 USB port ● Factory reset pinhole
Power	● 100 to 240 VAC, 50/60 Hz, 12V DC input ● Average 20W, peak 70W ● Must be used with power supply FSP FSP070-AHAN2 or AcBel ADF019
Operating temperature and humidity	● 0°C to 35°C (32°F to 104°F) ambient temperature ● 10% to 90% Relative Humidity (RH)
Storage and transport temperature	● -20°C to 60°C (-4°F to 140°F) at RH 10% to 90% (non condensing)
Dimensions	● Width: 19.7 in. (50.0 cm) ● Height: 3.2 in. (8.1 cm) ● Depth: 3 in. (7.7 cm) ● Weight: 4 lb. (2 kg) Packaging size ● Width: 23.8 in. (60.5 cm) ● Height: 12.8 in. (32.6 cm) ● Depth: 8.5 in. (21.6 cm) ● Weight: 7 lb. (3.2 kg)
Camera overview	● 4K UltraHD camera ● Supports up to 30 fps ● 8 MP image sensor ● 1/2.5’’ CMOS ● 5x zoom ● f/1.4 aperture ● 120° horizontal field of view ● Auto framing (face detect) ● Best overview ● Auto brightness, and white balance ● Focus distance 1 m to infinity
