TS-QD-314H-02C/400G QSFP-DD FR4 Transceiver 1310nm 2km SMF Optical Module
Price:
Negotiable
MOQ:
1
Delivery Time:
2-3 days
Brand:
HUAWEI
Product Description
400G QSFP-DD FR4 1310nm 2km Overview
This 400G QSFP-DD FR4 optical transceiver operates at 1310nm wavelength with 2km transmission distance over single mode fiber, adopting PAM4 encoding and complying with QSFP-DD MSA and IEEE 802.3bs standards. It features 3.3V power supply, DDM/DOM diagnostic function and low power consumption (≤8.5W), with LC duplex fiber interface. Designed for commercial temperature range (0°C~70°C), it is an ideal high-speed connectivity solution for data center interconnection, 5G backhaul and enterprise high-bandwidth network applications.

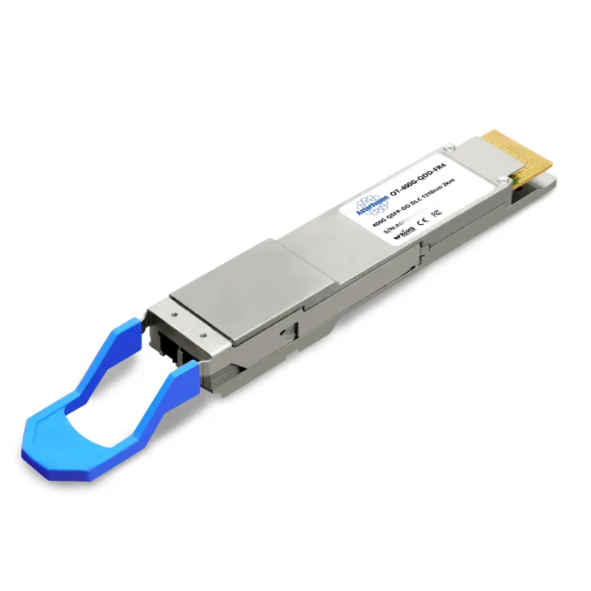

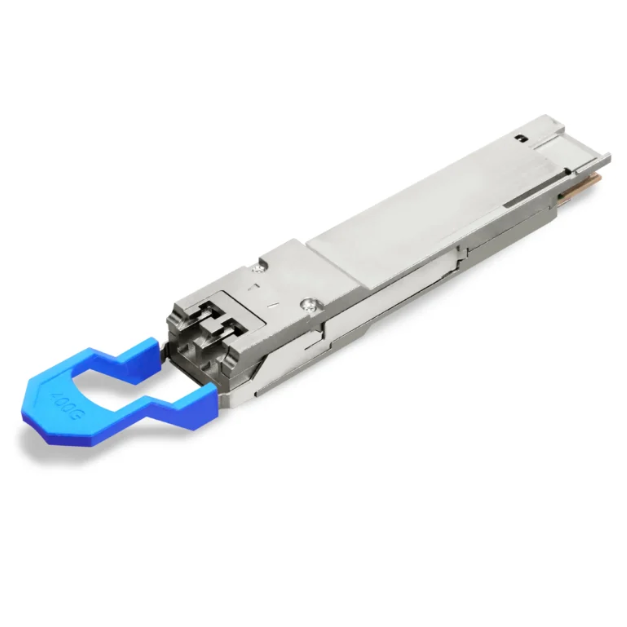

Figure 1 shows the front panel of 400G QSFP-DD FR4.
Quick Specs.
Table 1 shows the Quick Specs.
| Parameter | Specification |
|---|---|
| Form Factor | QSFP-DD |
| Data Rate | 400G |
| Wavelength | 1310nm |
| Transmission | 2km |
| Fiber Type | SMF |
| MSA Compliance | QSFP-DD MSA |
Detailed Specification
| Parameter | Specification |
|---|---|
| Form Factor | QSFP-DD (Quad Small Form-factor Double Density) |
| Nominal Bit Rate | 400Gbps |
| Wavelength | 1310nm (CWDM4) |
| Maximum Transmission Distance | 2km @ SMF (Single Mode Fiber) |
| Fiber Interface | LC Duplex, APC/UPC |
| Operating Temperature | 0°C ~ 70°C (Commercial Grade) |
| Power Supply Voltage | 3.3V ±5% |
| Power Consumption | ≤8.5W |
| MSA Compliance | QSFP-DD MSA, IEEE 802.3bs |
| Digital Diagnostics | DDM/DOM Supported |
| Encoding | PAM4 |
| Case Material | Metal Alloy |
| Application | Data Center, 5G Backhaul |
