TS-QDO-314H-10C-1/4X100G QSFP-DD LR4 Transceiver 1310nm 10km Single Mode Fiber Module
This 4X100G QSFP-DD LR4 optical transceiver is a high-performance, compact module designed for 400G Ethernet and data center interconnect applications. Operating at 1310nm over 10km single mode fiber, it features 4 independent 100G channels for aggregate 400G bandwidth, meeting IEEE 802.3bs and QSFP-DD MSA standards. Equipped with DDM/DOM functionality for real-time monitoring of optical and electrical parameters, it offers low power consumption, reliable transmission, and plug-and-play compatibility with standard QSFP-DD ports, ideal for high-speed data center, cloud computing and telecom backbone network deployments.

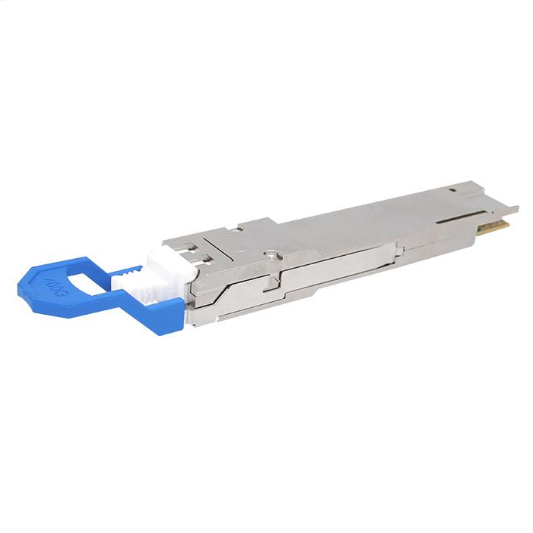

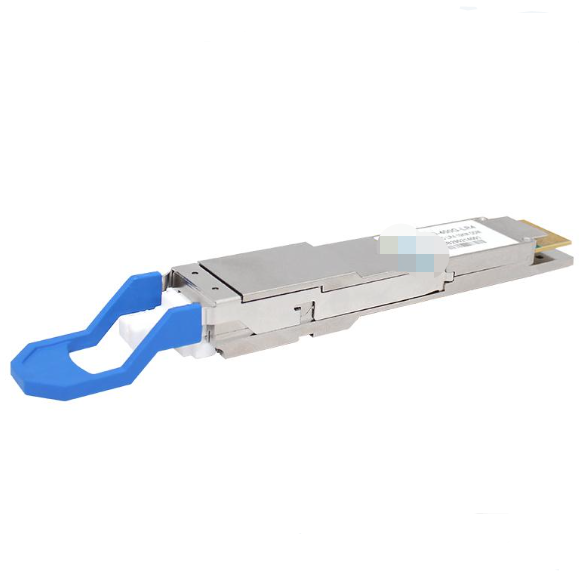

Figure 1 shows the front panel of 4X100G QSFP-DD LR4.
Table 1 shows the Quick Specs.
| Parameter | Specification |
|---|---|
| Form Factor | QSFP-DD |
| Data Rate | 4×100G (400G total) |
| Wavelength | 1310nm |
| Transmission Distance | 10km |
| Fiber Type | Single Mode Fiber (SMF) |
| Parameter | Details |
|---|---|
| Optical Form Factor | QSFP-DD (Quad Small Form-factor Pluggable-Double Density) |
| Nominal Bit Rate | 4×100 Gbps, 400 Gbps aggregate |
| Operating Wavelength | 1310nm (CWDM4/LR4 wavelength band) |
| Max Transmission Distance | 10km @ 9/125μm Single Mode Fiber (SMF) |
| Fiber Connector | LC duplex (uniboot/MPO optional) |
| Operating Temperature | Commercial: 0°C ~ 70°C (0-70°C); Industrial: -40°C ~ 85°C (-40-85°C) |
| Power Consumption | Typical < 4.5W, Max < 5.0W |
| Digital Diagnostics | Support DDM/DOM (Digital Diagnostic Monitoring) |
| Compliance | MSA Compliant, IEEE 802.3bs, QSFP-DD MSA |
| Laser Type | FP/DFB Laser |
| Receiver Type | PIN/APD Photodiode |
