TS-QDO8-854H-01C/400G QSFP-DD SR8 Transceiver 850nm 100m MMF For Data Center
Price:
Negotiable
MOQ:
1
Delivery Time:
2-3 days
Brand:
HUAWEI
Product Description
400G QSFP-DD LR8 1310nm 10km Overview
This 400G QSFP-DD SR8 optical transceiver is a high-performance, pluggable module designed for 400Gbps high-speed data transmission applications, compliant with QSFP-DD MSA and IEEE 802.3bs 400GBASE-SR8 standards. Operating at the 850nm wavelength with VCSEL technology, it supports 100-meter transmission over OM3/OM4 multimode fiber (MMF) via an MTP/MPO-16 interface, delivering low latency and high bandwidth for data center interconnects, 400G Ethernet switches, and enterprise high-speed networking infrastructure.

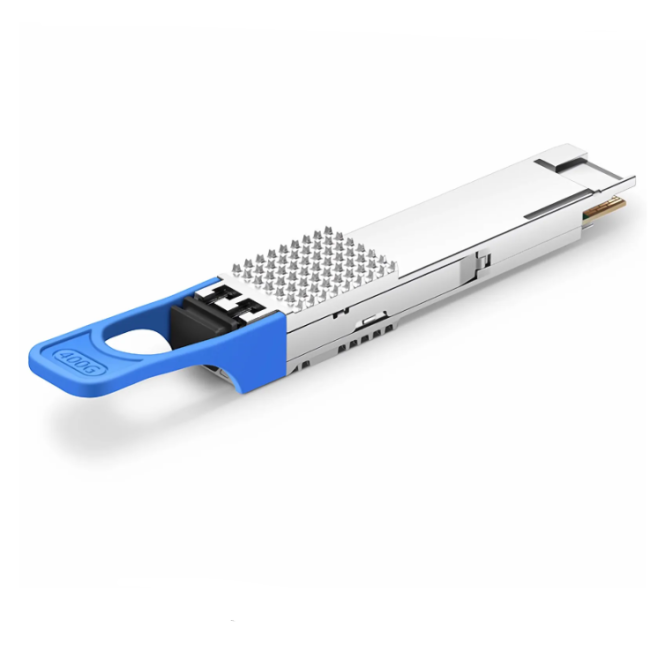

Figure 1 shows the front panel of 400G QSFP-DD LR8.
Quick Specs.
Table 1 shows the Quick Specs.
| Parameter | Specification |
|---|---|
| Form Factor | QSFP-DD |
| Data Rate | 400Gbps |
| Wavelength | 850nm |
| Transmission Distance | 100m |
| Fiber Type | MMF (OM3/OM4) |
| Interface | MTP/MPO-16 |
Detailed Specification
| Parameter | Details |
|---|---|
| Optical Transceiver Type | 400G QSFP-DD SR8 |
| Nominal Bit Rate | 400Gbps |
| Wavelength | 850nm (VCSEL) |
| Transmission Distance | 100m @ OM3, 100m @ OM4 MMF |
| Form Factor | QSFP-DD (Quad Small Form-factor Pluggable-Double Density) |
| Fiber Optic Interface | MTP/MPO-16 (Female), Parallel Multimode |
| Compliance | QSFP-DD MSA, IEEE 802.3bs 400GBASE-SR8 |
| Operating Temperature | 0°C ~ 70°C (Commercial Grade) |
| Power Supply | 3.3V DC |
| Digital Diagnostics | DDM/DOM Supported |
| Connector Type | MTP/MPO-16 |
| Application | 400G Ethernet, Data Center Interconnect, High-Speed Switching |
