TS-QD8-314H-40C/400G QSFP-DD ER8 Transceiver 1310nm 40km SMF LC Duplex DDM
Price:
Negotiable
MOQ:
1
Delivery Time:
2-3 days
Brand:
HUAWEI
Product Description
400G QSFP-DD ER8 Overview
This 400G QSFP-DD ER8 transceiver module is a high-performance, hot-pluggable optical transceiver designed for 400Gbps data transmission over 40km single mode fiber (SMF) at 1310nm wavelength. Fully compliant with QSFP-DD MSA and IEEE 802.3bs industry standards, it features LC duplex connector with optional APC/UPC polishing, and supports DDM/DOM real-time monitoring for voltage, temperature, Tx/Rx power and laser bias current—enabling easy network management and fault diagnosis.

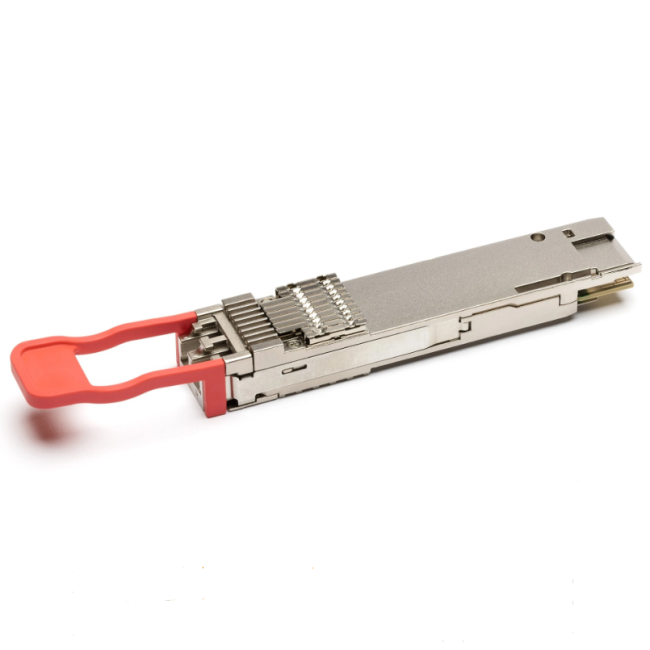

Figure 1 shows the front panel of 400G QSFP-DD ER8
Quick Specs.
Table 1 shows the Quick Specs.
| Parameter | Specification |
|---|---|
| Form Factor | QSFP-DD |
| Data Rate | 400Gbps |
| Wavelength | 1310nm |
| Transmission | 40km SMF |
| Connector | LC Duplex |
| Digital Monitoring | DDM/DOM Support |
| Fiber Type | Single Mode Fiber |
Detailed Specification
| Parameter | Specification |
|---|---|
| Transceiver Form Factor | QSFP-DD (Quad Small Form-factor Pluggable-Double Density) |
| Nominal Data Rate | 400Gbps |
| Wavelength | 1310nm (CWDM4/ER8 Tunable) |
| Maximum Transmission Distance | 40km @ Single Mode Fiber (SMF, G.652/G.655/G.657) |
| Fiber Optic Connector | LC Duplex, APC/UPC Option |
| Digital Monitoring | DDM/DOM (Digital Diagnostic Monitoring/Digital Optical Monitoring) Supported |
| Operating Temperature | Commercial: 0~70℃; Industrial: -40~85℃ (Optional) |
| Power Supply Voltage | 3.3V ±5% |
| Transmit Power (Tx) | -8~+3 dBm |
| Receive Sensitivity (Rx) | ≤-19 dBm |
| Link Protocol | Compliant with QSFP-DD MSA, IEEE 802.3bs |
| Encapsulation | Metal Casing, Hot Pluggable |
| Application | Data Center, Metro Network, 5G Backhaul, Optical Transport Network |
