TS-OPO-854H-01C-V/400G OSFP VR4 Transceiver Module with 850nm VCSEL for 50m OM4 Multimode Fiber and PAM4 Modulation in Data Centers
Price:
Negotiable
MOQ:
1
Delivery Time:
2-3 days
Brand:
HUAWEI
Product Description
400G OSFP VR4 Overview
The 400G OSFP VR4 is a high-performance pluggable optical transceiver module optimized for short-reach high-speed interconnection in modern data centers, AI/ML platforms and HPC clusters. It adopts 4×106.25Gbps PAM4 modulation technology with 850nm VCSEL array and PIN photo detector array, delivering a total data rate of 400Gbps for full-duplex transmission.

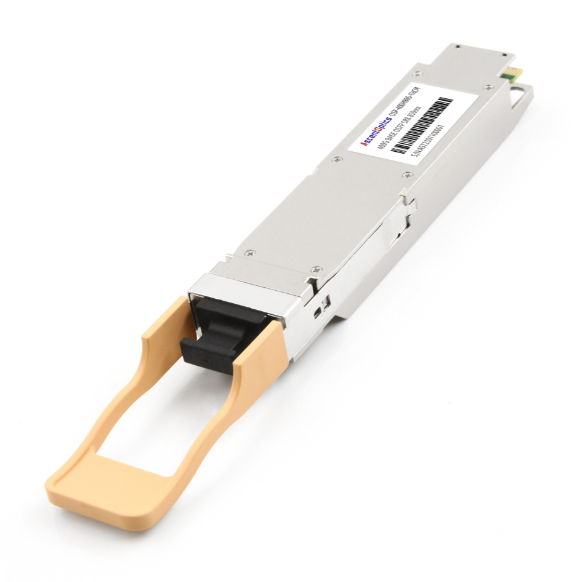

Figure 1 shows the front panel of 400G OSFP VR4.
Quick Specs.
Table 1 shows the Quick Specs.
| Parameter | Specification |
|---|---|
| Form Factor | OSFP |
| Data Rate | 4×106.25Gbps (400G total) |
| Wavelength | 850nm VCSEL |
| Transmission Distance | 50m@OM4, 30m@OM3 |
| Operating Temp | 0~70℃ |
| Power Consumption | ≤9W |
| Connector | MPO-12 APC |
| Modulation | PAM4 |
Detailed Specification
| Category | Parameter | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Electrical | Supply Voltage | 3.13 | 3.3 | 3.47 | V |
| Electrical | Power Dissipation | / | 7.5 | 8 | W |
| Electrical | Differential Impedance | 90 | 100 | 110 | Ohm |
| Optical | Wavelength | 842 | 850 | 863 | nm |
| Optical | Launch Power per Lane | -4.6 | / | 4 | dBm |
| Optical | Receive Power per Lane | -6.3 | / | 4 | dBm |
| Optical | Extinction Ratio | 2.5 | / | / | dB |
| Transmission | Data Rate per Lane | / | 106.25 | / | Gbps |
| Transmission | Distance @OM3 | / | / | 30 | m |
| Transmission | Distance @OM4 | / | / | 50 | m |
| Environmental | Operating Temperature | 0 | / | 70 | ℃ |
| Environmental | Storage Temperature | -20 | / | 85 | ℃ |
| Environmental | Humidity (Non-condensing) | 5 | / | 95 | % |
