TS-Q2-314H-02C/400G QSFP112 FR4 Optical Transceiver - 2km 1310nm PAM4 For Data Center
Price:
Negotiable
MOQ:
1
Delivery Time:
2-3 days
Brand:
HUAWEI
Product Description
400G QSFP112 FR4 Overview
The 400G QSFP112 FR4 optical transceiver is a high-performance, low-power pluggable optoelectronic device designed for next-generation high-speed data center interconnection. Adopting the compact QSFP112 form factor, it delivers a total data rate of 400Gbps with 4×100G PAM4 modulation technology, and supports 2km transmission over single-mode fiber (SMF) at 1310nm CWDM4 wavelength band.

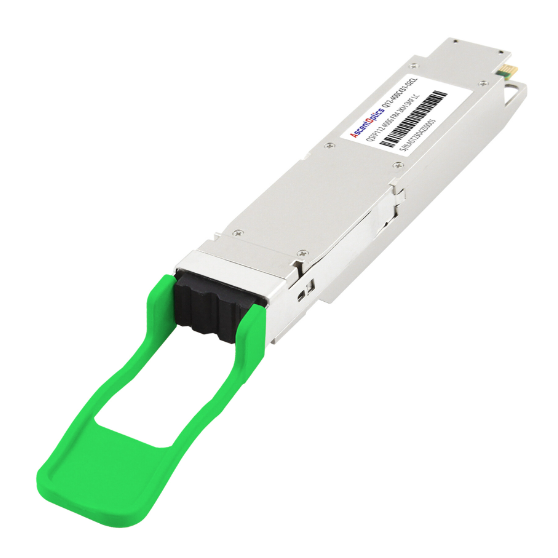

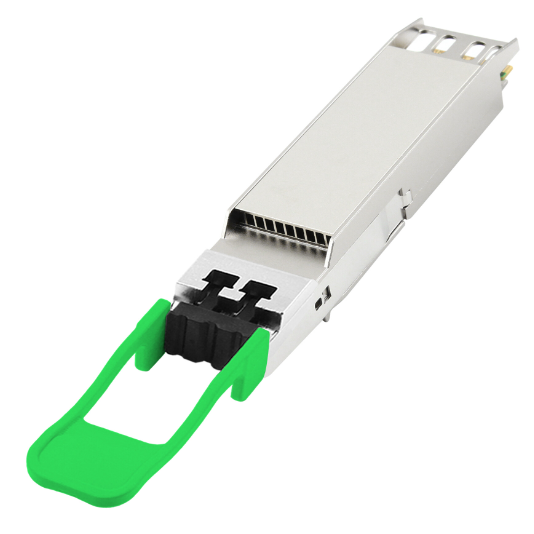

Figure 1 shows the front panel of 400G QSFP112 FR4.
Quick Specs.
Table 1 shows the Quick Specs
| Parameter | Value |
|---|---|
| Form Factor | QSFP112 |
| Data Rate | 400Gbps |
| Transmission Distance | 2km SMF |
| Wavelength | 1310nm CWDM4 |
| Connector | Duplex LC/UPC |
| Modulation | 4×100G PAM4 |
| Max Power Consumption | ≤10W |
| Operating Temp | 0~70°C |
Detailed Specification
| Item | Specification |
|---|---|
| Optical Transceiver Type | 400GBASE-FR4 QSFP112 |
| Total Data Rate | 400Gbps (4×106.25Gbps PAM4) |
| Wavelength Band | 1270/1290/1310/1330nm CWDM4 |
| Transmission Medium | Single Mode Fiber (SMF, G.652, 9μm) |
| Max Transmission Distance | 2km |
| Transmitter Type | EML |
| Receiver Type | PD |
| Tx Optical Power (AVG) | -3.2 ~ 4.4dBm |
| Rx Sensitivity (AVG) | ≤-7.2dBm |
| Rx Overload Power (AVG) | 4.4dBm |
| Minimum Extinction Ratio | ＞3.5dB |
| Connector Type | Duplex LC/UPC (Dual Fiber) |
| Power Consumption | Typical ≤10W |
| Digital Diagnostics | DDM/DOM Supported |
| Operating Temperature Range | Commercial: 0°C ~ 70°C (32°F ~ 158°F) |
| Storage Temperature Range | -40°C ~ 85°C (-40°F ~ 185°F) |
| Compliance Standards | IEEE 802.3cu, QSFP-112 MSA, CMIS Rev 4.0, OIF-CEI-112G-VSR-PAM4 |
| Hot Pluggable | Yes |
| Optical Power Budget | 4dB |
