TS-OPO8-858H-01C-V/800G OSFP VR8 MPO Optical Transceiver 850nm 50m Low Power For Data Center
SEO Optimized Product Description
The TS-OPO8-858H-01C-V is a high-performance 800G OSFP VR8 (Very Short Reach) optical transceiver module designed to meet the extreme bandwidth demands of modern AI-driven data centers. Utilizing 8x112G PAM4
modulation, this hot-pluggable module enables massive data throughput at ultra-low latency.
Engineered for efficiency, the module operates over 850nm VCSEL technology, supporting transmission distances of up to 50 meters over OM4 multimode fiber via an MPO-16/APC interface. It is fully compliant with OSFP MSA and IEEE 802.3ck standards, ensuring seamless integration into high-density network architectures.

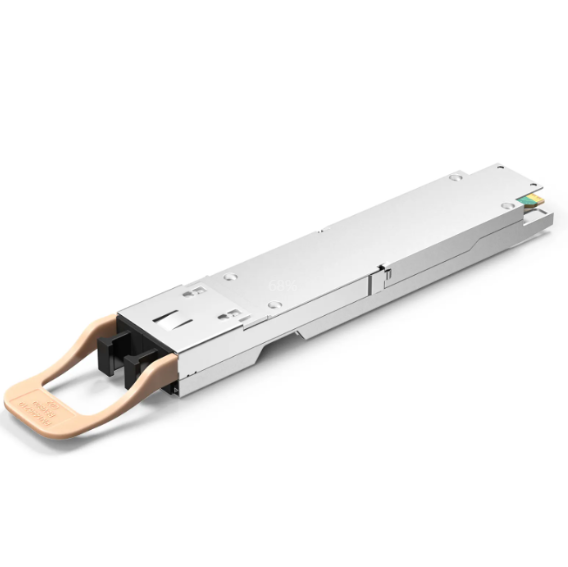

Figure 1 shows the front panel of 800G OSFP VR8 MPO.
Key Technical Specifications
| Parameter | Specification | Detail |
|---|---|---|
| Data Rate | 800Gbps | 8x112G PAM4 |
| Wavelength | 850nm | VCSEL |
| Form Factor | OSFP | Hot-Pluggable |
| Optical Interface | MPO-16 | APC |
| Advanced | 850nm 50m Solutions | for AI Clusters & Next-Generation Data Centers |
| Max Transmission Distance | 50m (OM4) | 30m (OM3) |
| Power Consumption | ≤ 16W | Low Power Design |
| Compliance | OSFP MSA, CMIS 4.0 | IEEE 800G VR8 |
| Diagnostics | Digital Diagnostic Monitoring | DDM |
Product Comparison: VR8 vs. SR8 vs. DR8
| Feature | 800G OSFP VR8 (This Model) | 800G OSFP SR8 | 800G OSFP DR8 |
|---|---|---|---|
| Distance | Up to 50m | Up to 100m | Up to 500m |
| Fiber Type | Multimode (MMF) | Multimode (MMF) | Singlemode (SMF) |
| Best Application | Server-to-Switch (ToR) | Switch-to-Switch (Short) | Leaf-Spine (Long) |
| Cost/Power | Lowest | Medium | Higher |
FAQ - Frequently Asked Questions
Q: Why choose OSFP VR8 for AI data centers?
A: The OSFP VR8 is optimized for "Very Short Reach" applications. In AI clusters, where
most connections are within 50 meters, VR8 offers the lowest power consumption and
cost compared to SR8 or single-mode modules, significantly improving the Power Usage
Effectiveness (PUE).
Q: What type of fiber cable does the TS-OPO8-858H-01C-V require?
A: It requires an MPO-16/APC multimode fiber patch cord. The 16-core design is
necessary to support 8 transmit and 8 receive channels simultaneously at 100G/112G per
lane.
Q: Does this module support DDM functions?
A: Yes, it includes full Digital Diagnostic Monitoring (DDM), allowing network
administrators to monitor real-time parameters such as laser power, temperature, and
voltage to ensure network stability.
Q: What is the warranty and technical support?
A: We provide a 1-year warranty and lifetime technical support. All modules are 100%
tested for compatibility on major switch platforms (Cisco, Arista, Huawei, NVIDIA) before
shipping.
