TS-OPO8-858H-01C/800G OSFP SR8 MPO Transceiver 850nm 30m/50m Multimode Fiber Module for Data Center
The TS-OPO8-858H-01C 800G OSFP SR8 MPO is a cutting-edge hot-pluggable optical transceiver designed for the next generation of 800G Ethernet connectivity. Engineered for ultra-high-speed data center interconnects (DCI), high-performance computing (HPC), and enterprise networking, this module leverages 8x100G PAM4 modulation technology to deliver a combined bandwidth of 800Gbps.

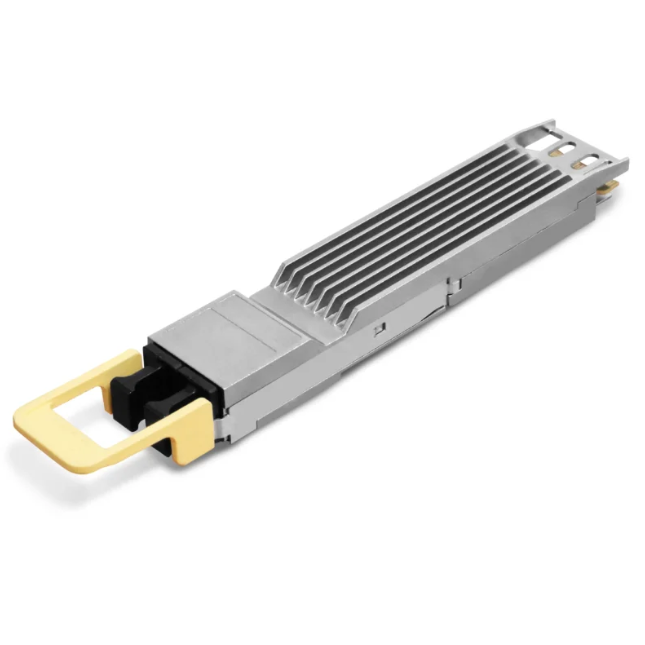

Compliant with OSFP MSA Type 2 and CMIS 5.0+, it ensures seamless integration with industry-leading hardware from Cisco, Arista, and NVIDIA. Its integrated heat sink design provides superior thermal management, critical for maintaining stability in high-density 800G environments.

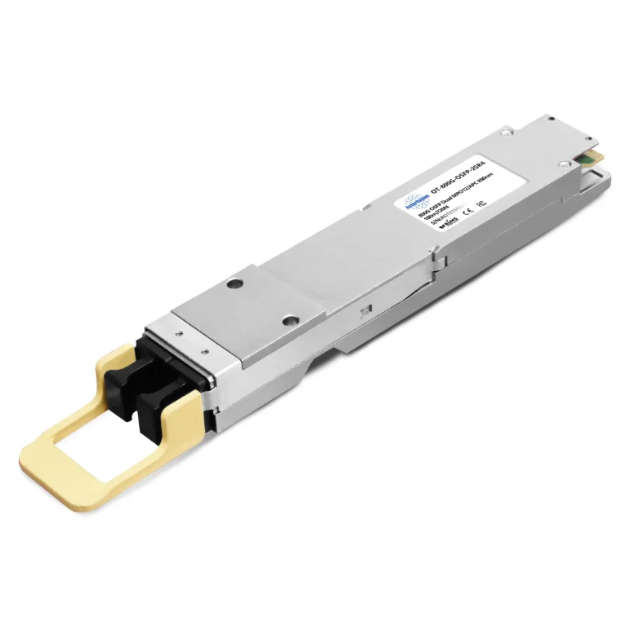

Figure 1 shows the front panel of 800G OSFP SR8 MPO.
| Parameter | Specification Details |
|---|---|
| Form Factor | OSFP (Octal Small Form-factor Pluggable) |
| Data Rate | 800Gbps (8 Channels x 112.5Gbps PAM4) |
| Wavelength | 850nm VCSEL |
| Fiber Type | Multimode Fiber (MMF) - OM3 / OM4 / OM5 |
| Transmission Distance | 30m over OM3 / 50m over OM4 / 60m over OM5 |
| Optical Connector | Dual MPO-12 APC |
| Power Consumption | < 17W Max |
| Operating Temp | 0°C to 70°C (Commercial Grade) |
A: While both support 800G speeds, the OSFP form factor is slightly larger and features an integrated heat sink. This allows for better cooling performance, which is essential for 800G modules that generate significant heat. OSFP is often preferred in liquid-cooled or high-airflow data centers like those using NVIDIA InfiniBand hardware.
A: 800G SR8 uses multimode fiber (OM4) and is cost-effective for short distances (up to 50m), perfect for top-of-rack (ToR) to leaf switch connections. 800G DR8 uses single-mode fiber (SMF) and supports distances up to 500m, making it ideal for leaf-to-spine connections or inter-room links.
A: Yes. Our modules are flashed with industry-standard firmware and undergo rigorous compatibility testing. We provide specific coding for Huawei, Cisco, Arista, and Mellanox/NVIDIA to ensure 100% plug-and-play performance.
Every 800G OSFP SR8 module undergoes a comprehensive testing protocol before shipment:
- Eye Diagram Analysis: Ensures signal integrity and low jitter.
- Bit Error Rate (BER) Testing: Guaranteed error-free transmission.
- Compatibility Validation: Verified on the latest 800G switches (e.g., Cisco Nexus 9000, NVIDIA Quantum-2).
We provide a 1-year warranty and lifetime technical support to ensure your network infrastructure remains reliable and future-proof.
