TS-Q2O8-318H-02C/800G OSFP112 DR8+ Optical Transceiver 500m 1310nm PAM4 for AI Data Center
PRODUCT DESCRIPTION
The TS-Q2O8-318H-02C is a premium 800G OSFP112 DR8+ optical module engineered specifically for the high-intensity workloads of AI Data Centers and High-Performance Computing (HPC). Featuring an 8-lane parallel optics design at 112Gbps per lane, it ensures massive throughput and ultra-low latency.
Designed for AI: Optimized for GPU-to-Switch fabrics in NVIDIA Quantum-2 and Arista-based environments.

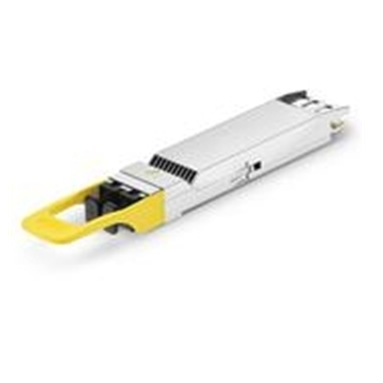

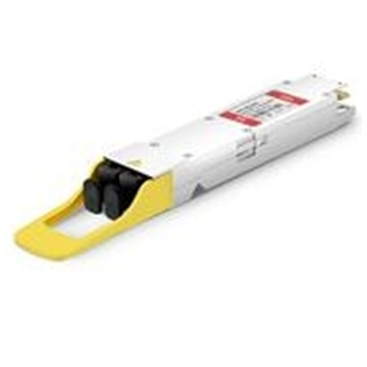

Figure 1 shows the front panel of 800G OSFP112 DR8+.
TECHNICAL SPECIFICATIONS
| Form Factor | OSFP112 (Flat Top/Finned) |
|---|---|
| Data Rate | 800Gbps (8x112G PAM4) |
| Wavelength | 1310nm |
| Reach | 500m over SMF |
| Optical Interface | Dual MPO-12 (APC) |
| Power Consumption | Lower than 15.5W |
| Compliance | OSFP MSA, CMIS 5.0, IEEE 802.3df |
PRODUCT Q&A (FAQ)
Q: What makes the "DR8+" version different from standard 800G DR8?
A: The DR8+ version is designed with an enhanced optical link budget. This allows for a reliable 500m transmission even when the network path includes multiple high-loss patches or older fiber infrastructure, ensuring signal integrity in complex AI leaf-spine architectures.
Q: Why is the OSFP form factor preferred over QSFP-DD for 800G AI workloads?
A: Thermal management is the key. 800G modules generate significant heat. The OSFP design incorporates an integrated heat sink, offering superior cooling capacity compared to QSFP-DD, which is critical for maintaining 24/7 stability in high-density AI clusters.
Q: How is the compatibility with Tier-1 network equipment handled?
A: Our 800G OSFP modules undergo rigorous interoperability testing. We provide customized EEPROM coding to ensure full compatibility with NVIDIA, Arista, Cisco, and Juniper platforms. Each module is "Plug-and-Play" certified.
Q: What is the after-sales and warranty coverage?
A: We offer a 1-year replacement warranty and dedicated technical support. Every module is verified via Bit Error Rate (BER) testing and real-traffic simulation before delivery to ensure zero-defect performance.
KEY APPLICATIONS
- 800GBASE-DR8 Ethernet links
- AI/ML Training Fabrics (Infiniband & RoCE)
- Hyperscale Cloud Data Center Interconnects
- Campus and Enterprise Core Networking
