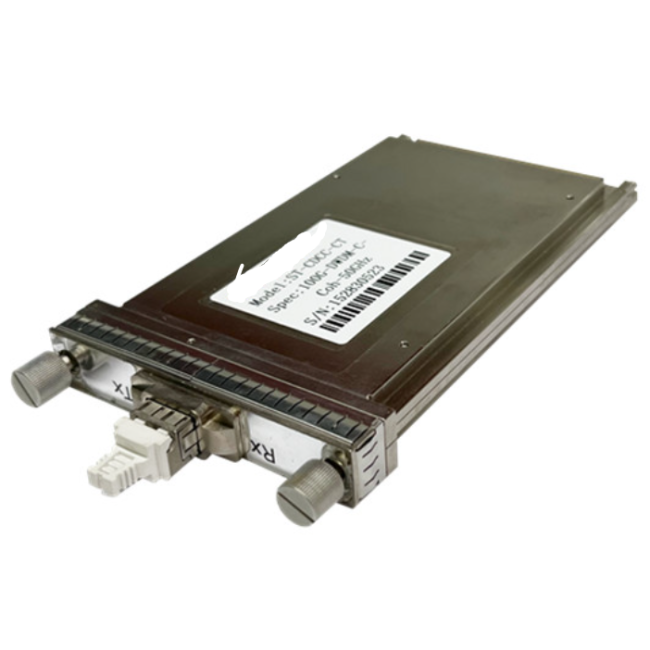

TS-CF-CO1H-ZR0C/100G CFP DWDM Coherent Transceiver Module - High Performance for Optical Networks
Price:
Negotiable
MOQ:
1
Delivery Time:
2-3 days
Brand:
HUAWEI
Product Description
100G CFP DWDM COHERENT Overview
This 100G CFP DWDM Coherent Transceiver Module is a high-performance, pluggable optical device engineered for next-generation long-haul and metro optical communication networks. Adopting advanced DP-QPSK coherent modulation technology and integrated digital signal processing (DSP), it delivers 100Gbps ultra-high data transmission over single-mode fiber (SMF) with exceptional signal integrity and anti-interference capability, supporting transmission reaches up to 400km without additional signal regeneration.

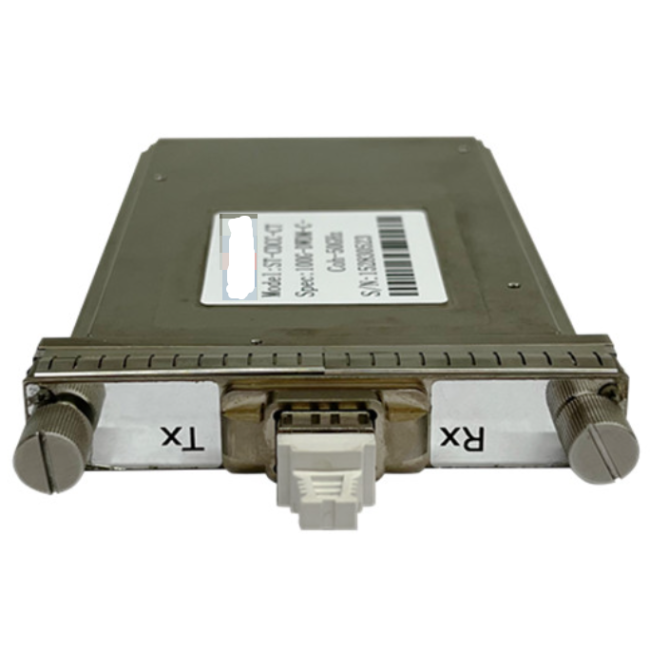

Figure 1 shows the front panel of 100G CFP DWDM COHERENT.
Quick Specs.
Table 1 shows the Quick Specs
| Parameter | Specification |
|---|---|
| Form Factor | CFP |
| Data Rate | 100Gbps |
| Technology | DWDM Coherent |
| Wavelength | C-band DWDM |
| Transmission Distance | Up to 80km/120km/400km |
Detailed Specification
| Parameter | Detailed Specification |
|---|---|
| Form Factor | CFP (C Form-factor Pluggable) |
| Nominal Data Rate | 100Gbps (100 Gigabit per second) |
| Modulation Format | DP-QPSK (Dual Polarization - Quadrature Phase Shift Keying) |
| Wavelength Range | C-band (1530nm - 1565nm) DWDM ITU-T Grid |
| Channel Spacing | 50GHz/100GHz |
| Transmission Reach | 80km (SMF), 120km (SMF), 400km (SMF with EDFA) |
| Interface | LC Duplex (Single Mode Fiber, SMF) |
| Digital Signal Processing | Integrated Coherent DSP |
| Power Supply | 3.3V DC |
| Operating Temperature | 0°C ~ +70°C (Commercial Grade) |
| Compliance | MSA Compliant, ITU-T G.698.2, IEEE 802.3ba |
| Power Consumption | ≤15W |
