TS-C2-CO2H-ZR0C/200G CFP2 Coherent Transceiver - High Speed DWDM Optical Module for Long Haul Transmission
Price:
Negotiable
MOQ:
1
Delivery Time:
2-3 days
Brand:
HUAWEI
Product Description
200G CFP2 COHERENT Overview
The 200G CFP2 Coherent Optical Transceiver is a high-performance pluggable module designed for 100/200Gbps long-haul, metro and DCI optical transmission networks. Adopting advanced digital coherent technology with integrated InP PICs and high-performance DSP A-S-I-C-S, it supports flexible modulation formats including DP-QPSK (100G), DP-8QAM and DP-16QAM (200G), enabling high-speed data transmission over single-mode fiber (SMF) with a maximum reach of 1300km.

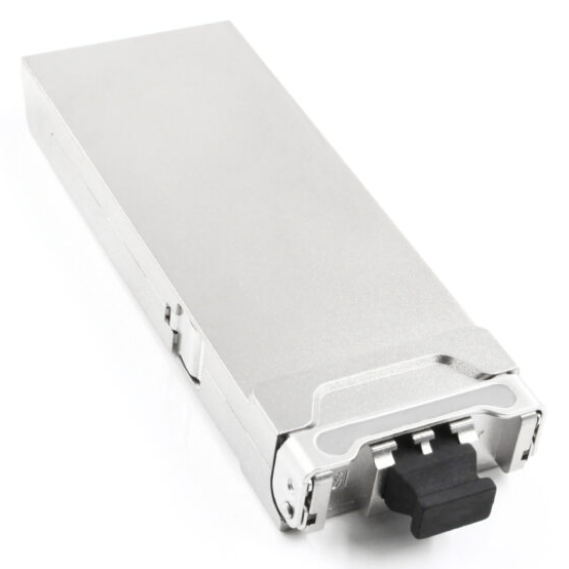

Figure 1 shows the front panel of 200G CFP2 COHERENT.
Quick Specs.
Table 1 shows the Quick Specs
| Parameter | Specification |
|---|---|
| Data Rate | 200Gbps (100Gbps compatible) |
| Form Factor | CFP2 MSA Compliant |
| Modulation | DP-QPSK,DP-8QAM,DP-16QAM |
| Transmission Reach | Up to 1300km SMF |
| Operating Temp | -5~70℃ |
Detailed Specification
| Category | Parameter | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Electrical | Supply Voltage | 3.3 | - | - | V |
| Power Consumption | - | - | 26 | W | |
| Optical (Tx) | Mean Output Power (DP-QPSK/8QAM/16QAM) | -5 | - | 1 | dBm |
| Baud Rate per IQ Modulator | 27.95 | - | 43 | GBaud | |
| Tunable Wavelength Range | 1528.77 | - | 1568.36 | nm | |
| Optical (Rx) | Input Power Range | -24 | - | 5 | dBm |
| OSNR Sensitivity (200G) | 14 | - | 18 | dB | |
| Mechanical | Form Factor Size | 106 | - | 41.5×12.4 | mm |
| Interface | LC Duplex (Optical),104-pin (Electrical) | - | - | - | |
| Environmental | Operating Temperature | -5 | - | 70 | ℃ |
| Storage Temperature | -40 | - | 85 | ℃ |
