TS-QD-CO4H-ZR0C/400G QSFP-DD OIF ZR Coherent Module 120km C-Band Tunable DCO Transceiver
Price:
Negotiable
MOQ:
1
Delivery Time:
2-3 days
Brand:
HUAWEI
Product Description
400G QSFP-DD OIF ZR Overview
This 400G QSFP-DD OIF ZR Coherent Module is a high-performance Digital Coherent Optics (DCO) transceiver, fully compliant with OIF 400ZR Implementation Agreement and IEEE 400GE Ethernet standards. Adopting advanced dual-polarization 16QAM modulation and concatenated forward error correction (C-FEC) technology, it supports 400Gbps single-carrier transmission and 4×100GE signal multiplexing, realizing dispersion-limited transmission up to 120km over amplified DWDM links and 40km over unamplified links.

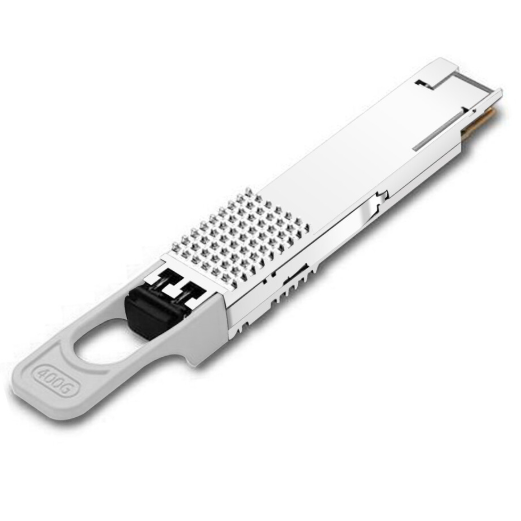

Figure 1 shows the front panel of 400G QSFP-DD OIF ZR.
Quick Specs.
Table 1 shows the Quick Specs
| Parameter | Specification |
|---|---|
| Form Factor | QSFP-DD Type 2a |
| Data Rate | 400Gbps (4×100GE/400GE) |
| Transmission Reach | 120km (amplified)/40km (unamplified) |
| Wavelength Range | Full C-band (1528.77~1567.13nm) |
| Power Consumption | ≤18.5W |
| Operating Temperature | 0°C ~ 70°C |
| Optical Interface | Duplex LC |
| Compliance | OIF 400ZR, IEEE 400GE |
Detailed Specification
| Category | Parameter | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Electrical | DC Supply Voltage | -0.3 | 3.3 | 3.6 | V |
| Electrical | ESD Threshold (HBM-DC Pins) | 2000 | - | - | V |
| Optical | TX Output Power | -13 | - | -9 | dBm |
| Optical | RX Input Power (Amplified) | -12 | - | 0 | dBm |
| Optical | RX Input Power (Unamplified) | -20 | - | 0 | dBm |
| Optical | OSNR Tolerance (400G ZR) | 26 | - | - | dB/0.1nm |
| Optical | CD Tolerance | -2.4 | - | 2.4 | ns/nm |
| Environmental | Storage Temperature | -40 | - | 85 | °C |
| Environmental | Operating Temperature (Case) | 0 | - | 70 | °C |
| Environmental | Relative Humidity (Non-condensing) | 5 | - | 85 | % |
| Performance | Power Dissipation | - | - | 18.5 | W |
| Performance | Channel Spacing | - | 75/100 | - | GHz |
