Siemens 6SL3120-1TE26-0AA3 SINAMICS S120 Single Motor Module - High Precision Industrial Drive
Price:
Negotiable
MOQ:
1
Delivery Time:
2-3 days
Brand:
Siemens
Product Description
Sinamics 6SL3120-1TE26-0AA3 Overview
The Siemens 6SL3120-1TE26-0AA3 is a high-performance booksize single motor module belonging to the SINAMICS S120 industrial drive series, engineered for precision motion control in industrial automation applications. With a rated output current of 60A and 32KW rated power, it operates on a 510-720 V DC link voltage, delivering continuous 51A current and short-term 80A current (40% duty cycle) to meet medium-to-high power motor driving demands.

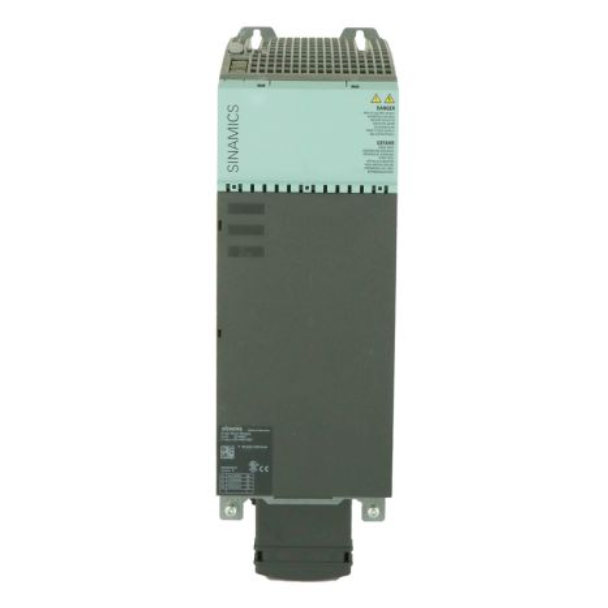

Figure 1 shows the front panel of 6SL3120-1TE26-0AA3.
Quick Specs.
Table 1 shows the Quick Specs.
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Product Type | Booksize Single Motor Module |
| Rated Current | 60 A |
| DC-Link Voltage | 510-720 V DC |
| Cooling Method | Built-in Fan (Internal Air) |
| Rated Power | 32 KW |
Detailed Specification
| Category | Parameter | Specification |
|---|---|---|
| Basic Information | Manufacturer | Siemens |
| Product Line | SINAMICS S120 | |
| Module Type | Booksize Single Motor Module | |
| Weight | 9.98 kg (22.00 lbs) | |
| Dimensions (L×W×H) | 27 cm × 15 cm × 38 cm | |
| Electrical Specs | Rated Output Current | 60 A |
| Continuous Current | 51 A | |
| Short-term Current (40% duty) | 80 A | |
| Maximum Output Current | 113 A | |
| DC-Link Voltage Range | 510 - 720 V DC | |
| Overvoltage Disconnection Level | 820 V DC (±2%) | |
| Undervoltage Disconnection Level | 380 V DC (±2%) | |
| Auxiliary Power Supply | 24 V DC (20.4-28.8 V range) | |
| Auxiliary Power Current | 1.05 A (24 V DC) | |
| DC-Link Capacitance | 1410 μf | |
| Output Voltage Scope | 0 to 0.717×DC-Link Voltage | |
| Performance | Pulse Frequency Limit | 4 kHz (standard); 16 kHz (derating) |
| Rated Power | 32 KW | |
| Output Type | 3AC 400 V | |
| Operating Condition | Standard Operating Temperature | 40 °C |
| Max Temp (Reduced Output) | 55 °C | |
| Storage Temperature | -25 °C to 70 °C | |
| Mechanical & Cooling | Cooling Mechanism | Built-in fan (internal air cooling) |
| Protection Grade | IP20 | |
| Interface & Safety | Safety Function | Safety Torque Off (STO), SIL3/IEC 61800-5-2 |
| Communication Interface | Drive-CLiQ, PROFINET/PROFIBUS DP (optional) | |
| Motor Brake Connection | 24 V DC, 2 A (plug-in connector X11) |
