Mitsubishi MR-J4-20A AC Servo Drive 0.2KW 200-240V High Precision Servo Amplifier
Price:
Negotiable
MOQ:
1
Delivery Time:
2-3 days
Brand:
Siemens
Product Description
Sinamics MR-J4-20A Overview
Mitsubishi MR-J4-20A is a high-performance general-purpose AC servo drive of the MELSERVO J4 series, designed for 0.2KW servo motor applications. It supports single/three-phase AC 200-240V input and features a 2.5kHz high-speed frequency response with a 4,194,304 pulses/rev high-resolution absolute encoder, enabling ultra-precise position, speed and torque control. The servo drive is equipped with one-touch auto-tuning and advanced vibration suppression functions, which can quickly complete gain adjustment and effectively reduce mechanical resonance, improving system stability and operation efficiency.

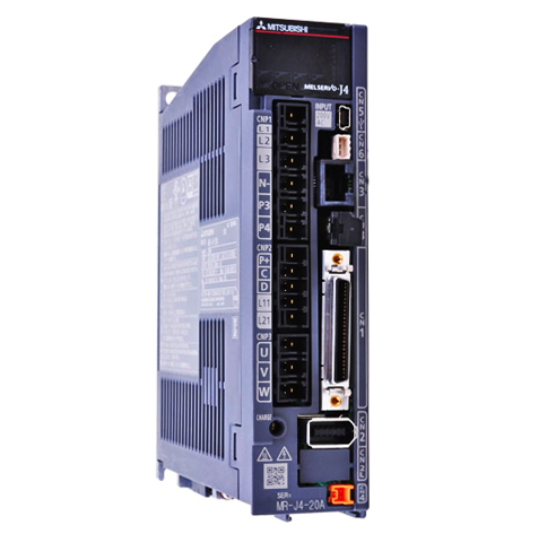

Figure 1 shows the front panel of MR-J4-20A.
Quick Specs.
Table 1 shows the Quick Specs.
| Item | Specification |
|---|---|
| Brand | Mitsubishi Electric |
| Series | MELSERVO J4 |
| Rated Power | 0.2KW/200W |
| Input Voltage | AC 200-240V (1/3 Phase) |
| Rated Current | 1.5A |
Detailed Specification
| Parameter | Details |
|---|---|
| Power Specification | Rated Output: 0.2KW/200W; Rated Current: 1.5A; Power Consumption: 45W |
| Input Voltage | Main Circuit: AC 200-240V 50/60Hz (1/3 Phase); Control Circuit: AC 200-240V 50/60Hz |
| Interface Power | 24V DC±10%, 0.5A (Including CN8 Connector Signal) |
| Control Performance | Speed Frequency Response: 2.5kHz; Max Command Pulse Frequency: 4M pulses/s; Encoder Resolution: 4,194,304 pulses/rev |
| Communication | RS-422/RS-485; USB (for debugging) |
| Protection Class | IP20 |
| Working Temperature | 0 ~ +55℃ |
| Control Modes | Position, Speed, Torque control (switchable) |
| Built-in Components | Dynamic brake, Regenerative resistor |
