Siemens 6ES7136-6DC00-0CA0 ET200SP F-DQ 8x24VDC Safety Digital Output Module
Price:
Negotiable
MOQ:
1
Delivery Time:
2-3 days
Brand:
Siemens
Product Description
Sinamics 6ES7136-6DC00-0CA0 Overview
Siemens 6ES7136-6DC00-0CA0 is a high-performance fail-safe digital output module for the SIMATIC ET 200SP distributed I/O system, featuring 8 channels of 24VDC/0.5A PNP high-speed output with a compact 15mm width design that saves cabinet space for high-density I/O applications. Compliant with SIL 3 (IEC 61508) and PL e (ISO 13849) safety standards, it ensures reliable operation in industrial safety control scenarios such as emergency stop, machine safety and safety door control.

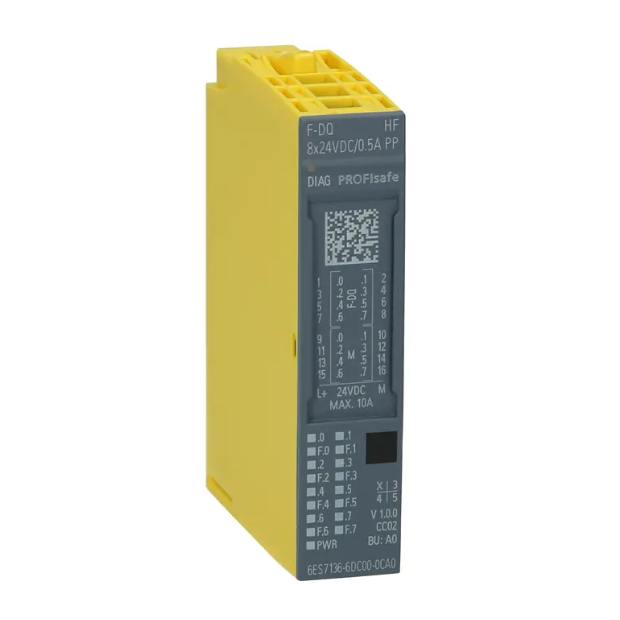

Figure 1 shows the front panel of 6ES7136-6DC00-0CA0.
Quick Specs.
Table 1 shows the Quick Specs.
| Item | Specification |
|---|---|
| Brand | Siemens |
| Type | Safety Digital Output Module |
| Output Channels | 8 x 24VDC/0.5A |
| Safety Rating | SIL 3, PL e |
| Module Width | 15mm |
| Operating Voltage | 24VDC (19.2-28.8VDC) |
Detailed Specification
| Parameter | Details |
|---|---|
| Product Model | 6ES7136-6DC00-0CA0 |
| Product Series | SIMATIC ET 200SP |
| Output Type | Transistor (PP HF) |
| Rated Output Current | 0.5A per channel, 3A per module (max) |
| Supply Voltage | 24VDC (rated); 19.2-28.8VDC (permissible) |
| Safety Standard | SIL 3 (IEC 61508), PL e (ISO 13849) |
| Switching Frequency | 30Hz (resistive load, max) |
| Cable Length | 100m (max, shielded/unshielded) |
| Operating Temperature | 0-60℃ (horizontal), 0-50℃ (vertical) |
| Power Loss | 3W (typ) |
| Diagnostic Function | Short-circuit protection, LED status display |
| Backplane Bus Power | 70mw available |
| Mounting Type | Plug-in, compatible with BU Type A0 |
| Weight | Approx. 48g |
