Siemens 6SL3120-2TE21-8AA3 SINAMICS S120 Double Motor Module with 18A Output Current 600V DC Input and DRIVE-CLiQ Interface
Price:
Negotiable
MOQ:
1
Delivery Time:
2-3 days
Brand:
Siemens
Product Description
Sinamics 6SL3120-2TE21-8AA3 Overview
The 6SL3120-2TE21-8AA3 is a high‑performance double motor module from the Siemens SINAMICS S120 drive system, designed for precise dual‑axis motion control in automation and machinery. It features a compact booksize design, internal air cooling, and optimized pulse patterns for high efficiency and low noise.With 2×18A rated output current and 600V DC input, it delivers stable power for two motors simultaneously. Integrated via DRIVE‑CLiQ, it ensures fast and reliable communication with the control unit. It supports extended Safety Integrated functions and complies with global certifications, making it ideal for machine tools, packaging systems, printing machines, and high‑precision assembly lines.

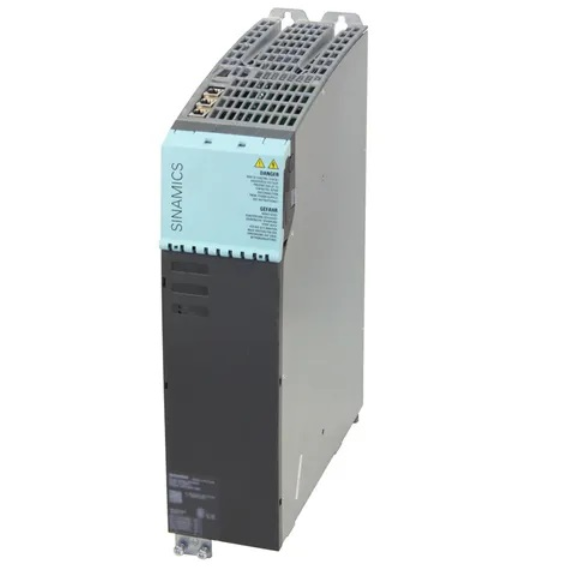

Figure 1 shows the front panel of 6SL3120-2TE21-8AA3.
Quick Specs.
Table 1 shows the Quick Specs.
| Item | Specification |
|---|---|
| Part Number | 6SL3120-2TE21-8AA3 |
| Type | Double Motor Module |
| Series | SINAMICS S120 |
| Input | DC 600V |
| Output | 3AC 400V, 18A/18A |
| Cooling | Internal Air Cooling |
| Design | Booksize |
| Interface | DRIVE‑CLiQ |
Detailed Specification
| Parameter | Value |
|---|---|
| Order Number | 6SL3120-2TE21-8AA3 |
| DC Link Voltage | 510–720 V DC |
| Output Voltage | 3-phase 400 V AC |
| Output Current | 2×18 A (continuous) |
| Mounting | Booksize, cabinet mounting |
| Cooling Method | Internal fan cooling |
| Control Interface | DRIVE‑CLiQ |
| Safety Integrated | Extended SI functions supported |
| Certifications | CE, cULus, SIL2, PL d |
| Ambient Temperature | 0–40 °C (without derating) |
| Weight | approx. 6.65 kg |
