Fanuc αiSP-B Series Spindle Drive Module with 165A Output Current and 283-339V Input Voltage for CNC Machining Centers
Price:
Negotiable
MOQ:
1
Delivery Time:
2-3 days
Brand:
Siemens
Product Description
Sinamics A06B-6222-H037 Overview
The Fanuc A06B-6222-H037 is a high‑performance spindle amplifier module belonging to the αiSP‑B (AiSP‑37‑B) series, designed for precision spindle control in CNC machining centers, lathes, and industrial automation systems. It delivers stable, high‑power output (up to 165A) with a wide input voltage range (283–339V), ensuring reliable operation under varying industrial conditions.

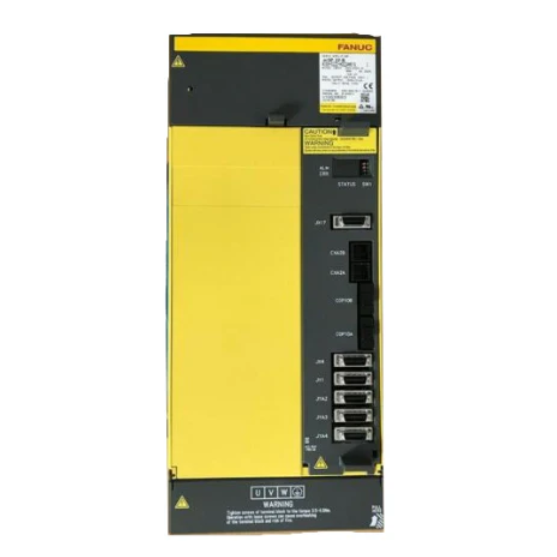

Figure 1 shows the front panel of A06B-6222-H037.
Quick Specs.
Table 1 shows the Quick Specs
| Item | Details |
|---|---|
| Model | A06B-6222-H037 (AiSP-37-B) |
| Type | Spindle Amplifier Module |
| Series | Fanuc αiSP‑B |
| Input | 283–339V, 3‑Phase, 152A |
| Output | 200–240V, 3‑Phase, 165A |
| Application | CNC Machines, Industrial Automation |
| Condition | New / Refurbished |
Detailed Specification
| Parameter | Specification |
|---|---|
| Part Number | A06B-6222-H037 |
| Product Name | Spindle Amplifier Module |
| Series | αiSP‑B (Alpha iSP‑B) |
| Model Variant | AiSP‑37‑B |
| Input Voltage | 283–339 VAC, 3‑Phase |
| Input Current | 152 A |
| Output Voltage | 200–240 VAC, 3‑Phase |
| Output Current | 165 A |
| Control Interface | Fanuc Serial Bus (FSSB) |
| Protection | Overvoltage, Overcurrent, Overtemp |
| Certifications | CE, RoHS |
| Weight | Approx. 15 kg |
| Dimensions | Standard Fanuc Amplifier Size |
| Mounting | Rack‑Mount / Cabinet |
