FANUC A06B-6104-H245 Spindle Amplifier Module SPM-45HV 50 kW 400V AC for CNC Machining
Price:
Negotiable
MOQ:
1
Delivery Time:
2-3 days
Brand:
Siemens
Product Description
Sinamics A06B-6104-H245 Overview
The FANUC A06B-6104-H245 is a high-performance Alpha Spindle Amplifier Module, specifically the SPM-45HV variant, engineered for demanding CNC machining and industrial automation applications. Delivering a rated input power of 50 kW at 400V AC, it provides the high torque and speed regulation required for heavy-duty spindle control in milling, turning, and multi-axis machining centers.

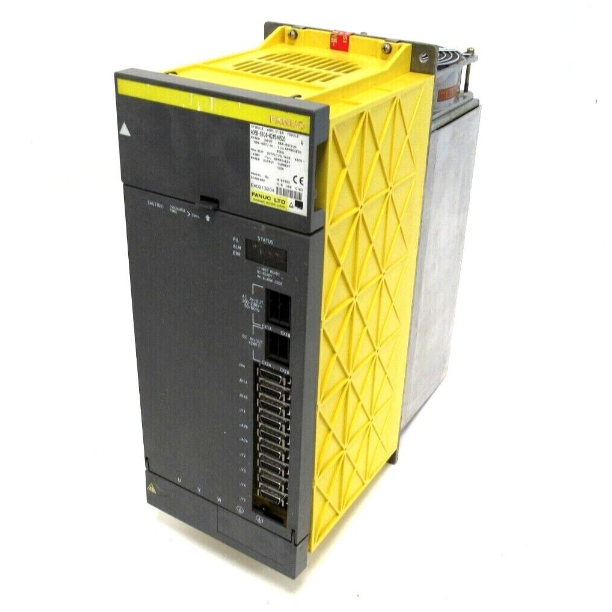

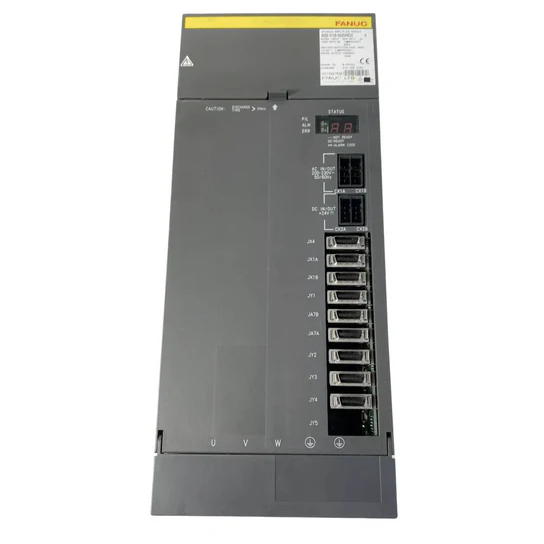

Figure 1 shows the front panel of A06B-6104-H245.
Quick Specs.
Table 1 shows the Quick Specs
| Parameter | Value |
|---|---|
| Part Number | A06B-6104-H245 (Typically #H520) |
| Type | Alpha Spindle Module (SPM-45HV) |
| Input Power | 50 kW |
| Input Voltage | 400 V AC 3-Phase |
| Brand | FANUC |
Detailed Specification
| Category | Detail | Specification |
|---|---|---|
| Model Identification | Full Model | A06B-6104-H245#H520 |
| Product Series | A06B-6104 | |
| Common Name | SPM-45HV Spindle Amplifier | |
| Electrical Ratings | Rated Input Power | 50 kW |
| Input Voltage | 400 V AC (3-Phase) | |
| Frequency | 50/60 Hz | |
| Mechanical & Physical | Cooling Method | Forced Air / Liquid Cooled (Typical for SPM-HV) |
| Mounting | Rack Mount (FANUC Standard Chassis) | |
| Operational | Control Interface | FANUC Serial Servo Interface (SSI) |
| Protection Class | IP20 (Chassis) | |
| Compliance | Origin | Japan |
| Standards | CE, UL Recognized |
