S5700-28P-LI-24S-BAT, Huawei S5700 Switch, 28xGig SFP/4x10/100/1000 or SFP/1 battery slot
Huawei S5700-28P-LI-24S-BAT Overview
Huawei S5700 Series Switches provide highly scalable gigabit access for terminals in enterprise campus networks; also ideal for resilient server support and aggregation in large-scale data centers. S5700-28P-LI-24S-BAT offers 28 Gig SFP, 4 of which are dual-purpose 10/100/1000 or SFP, and 1 battery slot.
Quick Specs

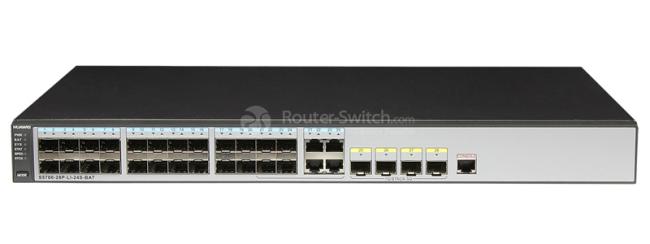

Figure 1 shows the appearance of Huawei S5700-28P-LI-24S-BAT switch.
Table 1 shows the Quick Specs.
| Product Code | S5700-28P-LI-24S-BAT |
| Ports |
28 x GE SFP ports, 4 x Combo 10/100/1,000 Base-T Ethernet ports |
| Forwarding Performance | 42 Mpps |
| Switching Capacity | 256 Gbit/s |
| Stack | Not supported |
| RAM | 256 MB |
| Flash | 200 MB |
| Power |
AC power supply Battery |
| Heat Dissipation | Built-in fans for forced air cooling |
| Dimensions (W x D x H) | 44.2 cm x 31 cm x 4.36 cm |
Product Details

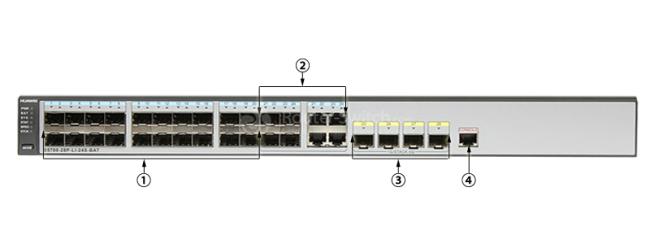

Figure 2 shows the front panel of Huawei S5700-28P-LI-24S-BAT switch.
Note:
| ① | Twenty 100/1000BASE-X ports | ③ | Four 1000BASE-X ports |
| ② | Four combo ports (10/100/1000BASE-T + 100/1000BASE-X) | ④ | One console port |
Figure 3 shows the back panel of Huawei S5700-28P-LI-24S-BAT switch.
Note:
| ① | Ground screw | ③ | Battery slot |
| ② | AC socket | ||
· The battery installed on an S5700-28P-LI-24S-BAT switch can automatically supply power to the switch in case of a mains power outage, ensuring uninterrupted services. When the AC power supply recovers, the battery turns to the charging state.
The Transceiver
Table 2 shows the recommended optical transceivers.
| Model | Description |
| SFP-1000BaseT | Electrical Transceiver, SFP, GE, Electrical Interface Module(100m,RJ45) |
| eSFP-GE-SX-MM850 | Optical Transceiver, eSFP, GE, Multi-mode Module(850nm,0.55km,LC) |
| SFP-GE-LX-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module(1310nm,10km,LC) |
| S-SFP-GE-LH40-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module(1310nm,40km,LC) |
| S-SFP-GE-LH40-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module(1550nm,40km,LC) |
The Power
Table 3 shows the battery module and AC power supply of this switch.
| Models | Description |
| BAT-4AHA | Huawei BAT-4AHA Lithium ion battery unit for S5700 |
| BAT-8AHA | Huawei BAT-8AHA Rechargeable Battery for S5700 |
| ES0W2PSA0150 | 150W AC Power Module(Black) |
Compare to Similar Items
Table 4 shows the comparison of Huawei S5700-28P-LI-24S-BAT and S5700-28X-LI-24S-AC switch.
| Models | S5700-28P-LI-24S-BAT | S5700-28X-LI-24S-AC |
| Ports | 28 Gig SFP,4 of which are dual-purpose 10/100/1000 or SFP |
24 x GE SFP ports 4 x Combo 10/100/1,000 Base-T Ethernet ports |
| Power Supply |
AC model, not supporting RPS Support Battery Module |
AC model, supporting RPS |
| Software Image | Lite software Image | Lite software Image |
