Mitsubishi FX5-CCL-MS CC-Link Master Module for MELSEC iQ-F PLC with 64 Remote Stations and 10 Mbps Speed
Price:
Negotiable
MOQ:
1
Delivery Time:
2-3 days
Brand:
Siemens
Product Description
Sinamics FX5-CCL-MS Overview
The FX5‑CCL‑MS is a dedicated CC‑Link communication module for Mitsubishi MELSEC iQ‑F series PLCs. It operates as a master station or intelligent device station to build stable, high‑speed industrial field networks. Supporting multiple baud rates and up to 64 remote stations, it enables reliable data exchange between PLCs, remote I/O, and field devices. Compact, easy to install, and certified for global standards, the FX5‑CCL‑MS is ideal for factory automation, machinery control, and distributed I/O systems.

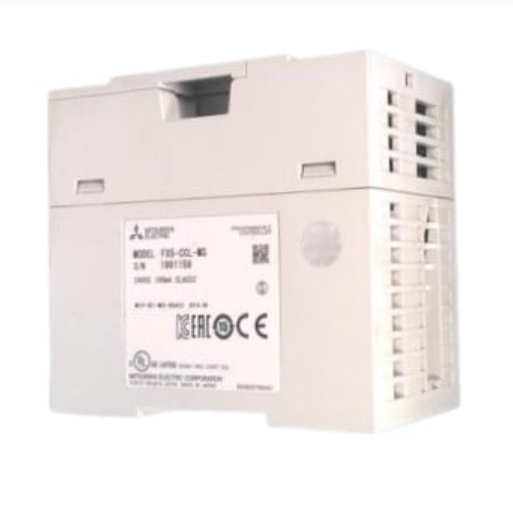

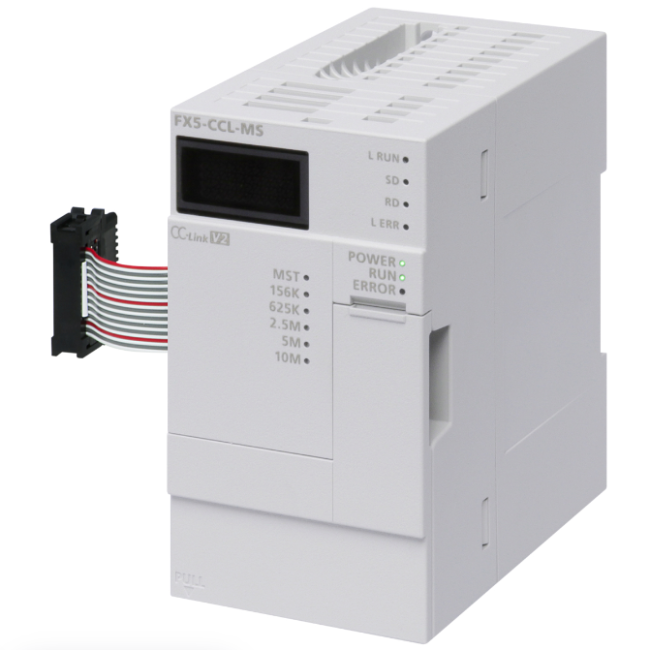

Figure 1 shows the front panel of FX5-CCL-MS.
Quick Specs.
Table 1 shows the Quick Specs
| Item | Details |
|---|---|
| Model | FX5-CCL-MS |
| Brand | Mitsubishi Electric |
| Series | MELSEC iQ-F |
| Function | CC-Link Master / Intelligent Device Station |
| Compatible CPU | FX5U / FX5UC / FX5UJ |
| Communication Speed | 156 kbps / 625 kbps / 2.5 Mbps / 5 Mbps / 10 Mbps |
| Certifications | CE, UL, cUL, RoHS |
Detailed Specification
| Specification | Value |
|---|---|
| Model | FX5-CCL-MS |
| Applicable PLC | MELSEC iQ‑F series (FX5U, FX5UC, FX5UJ) |
| Station Type | Master station / Intelligent device station |
| Occupied I/O Points | 8 points |
| Communication Method | CC‑Link (differential serial) |
| Transmission Speed | 156kbps, 625kbps, 2.5Mbps, 5Mbps, 10Mbps |
| Max. Connected Stations | Up to 64 stations (master mode) |
| Max. Distance | 1200 m (depending on speed) |
| Power Supply | 5 VDC (from PLC base unit) |
| Current Consumption | Approx. 100 mA |
| Dimensions (W×H×D) | 50 mm × 90 mm × 83 mm |
| Weight | 0.3 kg |
| Standards | CE, UL/cUL, RoHS, EMC |
| Engineering Tool | GX Works3 |
