Fanuc A06B-6102-H115#H520 Alpha Spindle Amplifier Module SPM-15 CNC Drive
Price:
Negotiable
MOQ:
1
Delivery Time:
2-3 days
Brand:
Siemens
Product Description
Sinamics a06b-6102-h115#h520 Overview
A06B-6102-H115#H520 is a CE-certified Alpha Series Spindle Amplifier Module (SPM-15) designed for high‑performance CNC machine tools. It provides stable, precise spindle control with 17.5 kW rated power and 63 A output current, compatible with Alpha 12/P15/P18 spindle motors. Featuring Type 4 alpha sensor and Cs contour control, it ensures high machining accuracy and reliability. Built-in dual cooling and industrial-grade design extend service life in harsh production environments. Widely used in CNC lathes, milling machines, and machining centers, it is a reliable drive solution for automated manufacturing.

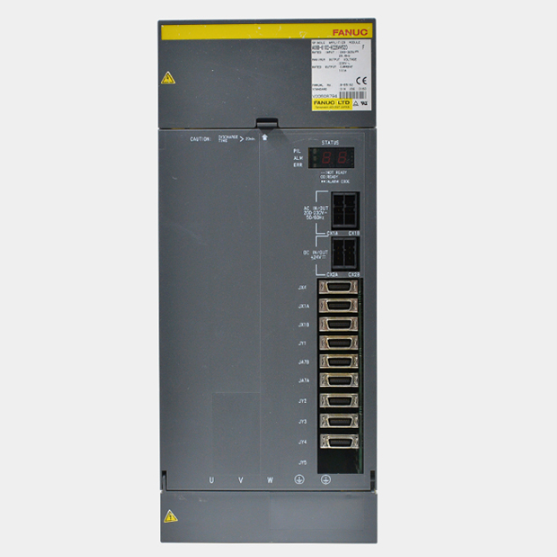

Figure 1 shows the front panel of a06b-6102-h115#h520.
Quick Specs.
Table 1 shows the Quick Specs
| Item | Value |
|---|---|
| Part Number | A06B-6102-H115#H520 |
| Type | Alpha Spindle Amplifier (SPM-15) |
| Input | 283–325 VDC, 17.5 kW |
| Output | 230 VAC, 63 A |
| Certification | CE Approved |
Full Specification Table
| Parameter | Details |
|---|---|
| Manufacturer | FANUC |
| Model | A06B-6102-H115#H520 |
| Series | Alpha Type 4 Spindle Module |
| Model Code | SPM-15 |
| Input Voltage | 283–325 VDC |
| Rated Power | 17.5 kW |
| Output Voltage | 230 VAC |
| Rated Output Current | 63 A |
| Compatible Motors | Alpha 12, Alpha P15, Alpha P18 |
| Control Interface | Type 4 Alpha Sensor, Cs Contour Control |
| Dimensions (W×H×D) | 150 mm × 380 mm × 307 mm |
| Cooling | Internal + External Fan |
| Approval | CE |
| Application | CNC Milling, Lathe, Machining Center |
