Yaskawa SGDH-10DE-OY Sigma-II 1kW 400V Servo Drive
Price:
Negotiable
MOQ:
1
Delivery Time:
2-3 days
Brand:
Siemens
Product Description
Sinamics SGDH-10DE-OY Overview
The SGDH-10DE-OY is a high-performance servo drive from Yaskawa’s Sigma-II series, designed for precise motion control in industrial automation. It delivers 1.0 kW rated power with 3-phase 400V AC input, supporting torque, speed, and position control modes. Equipped with 10-level auto-tuning, 300% peak torque output, and comprehensive protection features, it ensures fast response, high accuracy, and stable operation. The -OY variant is optimized for sealed motors, making it ideal for CNC, packaging, assembly lines, and other demanding industrial applications.

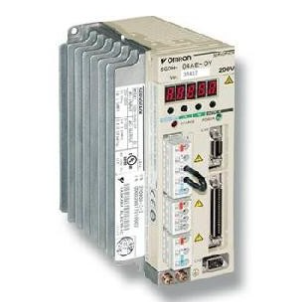

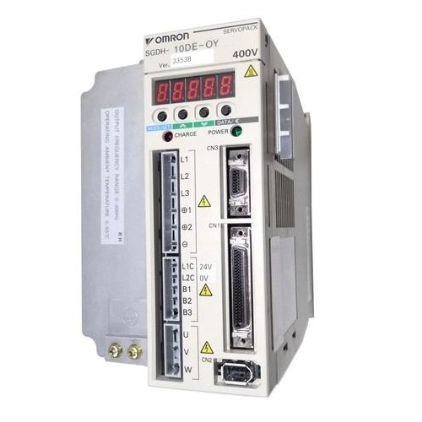

Figure 1 shows the front panel of SGDH-10DE-OY.
Quick Specs.
Table 1 shows the Quick Specs
| Item | Value |
|---|---|
| Model | SGDH-10DE-OY |
| Brand | Yaskawa |
| Series | Sigma-II |
| Power | 1.0 kW |
| Voltage | 3-phase 400V AC |
| Control Modes | Torque, Speed, Position |
Full Specification Table
| Parameter | Details |
|---|---|
| Part Number | SGDH-10DE-OY |
| Type | AC Servo Drive / Servopack |
| Series | Sigma-II |
| Rated Output | 1.0 kW |
| Input Power | 3-phase 380–480V AC, 50/60 Hz |
| Output Current | 3.5 A |
| Control Modes | Torque control, Speed control, Position control |
| Peak Torque | 300% of rated for 3 seconds |
| Auto-tuning | 10-level online rigidity adjustment |
| Motor Recognition | Automatic motor recognition |
| Communication | Mechatrolink-I/II, DeviceNet, PROFIBUS (optional) |
| Protection | Overcurrent, Overvoltage, Undervoltage, Overload, Overtemperature |
| Cooling | Natural air cooling |
| Operating Temp | 0°C to +55°C |
| Weight | Approx. 3 kg |
