1FK7060-5AF71-1ZZ9-Z | Siemens KUKA Synchronous Servo Motor Original
Price:
Negotiable
MOQ:
1
Delivery Time:
2-3 days
Brand:
Siemens
Product Description
Sinamics 1FK7060-5AF71-1ZZ9-Z Overview
1FK7060-5AF71-1ZZ9-Z is a high‑performance permanent magnet synchronous servo motor, jointly designed by Siemens and KUKA for robot joint and high‑precision motion control applications. It features high torque density, fast dynamic response, and IP65 robust enclosure, suitable for continuous operation in industrial environments. With integrated absolute encoder and 24V holding brake, it ensures accurate positioning and safe stop. This motor is widely used in KUKA robotic systems, automation lines, assembly equipment, and handling machines, delivering stable and reliable drive performance.

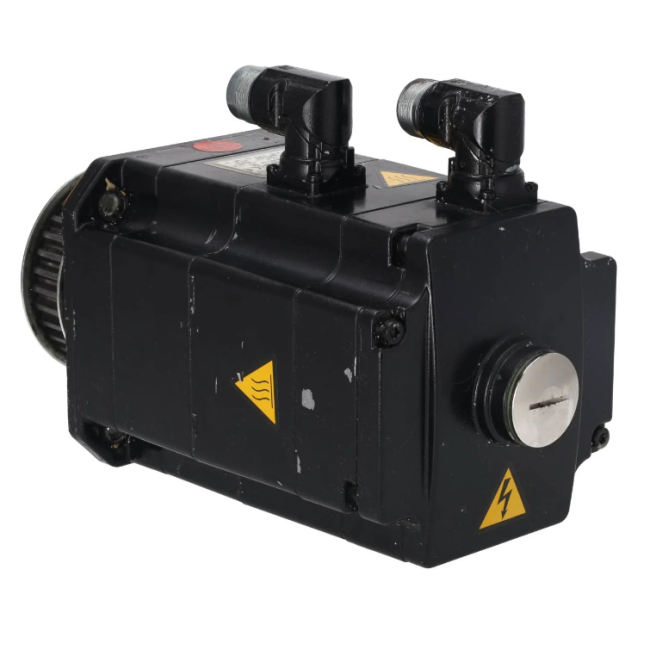

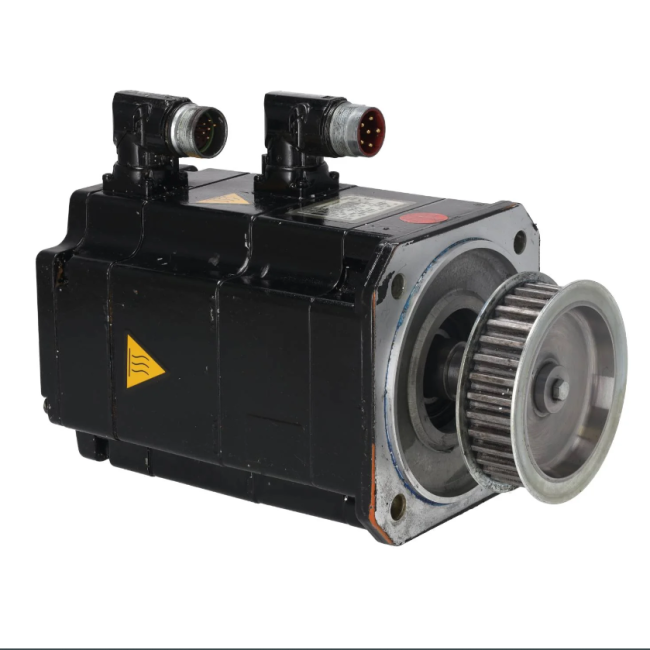

Figure 1 shows the front panel of 1FK7060-5AF71-1ZZ9-Z.
Quick Specs.
Table 1 shows the Quick Specs
| Item | Value |
|---|---|
| Type | Permanent Magnet Synchronous Servo Motor |
| Rated Power | 2.3 kW |
| Rated Torque | 11.6 Nm |
| Rated Speed | 3000 rpm |
| Protection | IP65 |
Detailed Specification
| Parameter | Value |
|---|---|
| Model Number | 1FK7060-5AF71-1ZZ9-Z |
| Motor Type | Permanent Magnet Synchronous Servo Motor |
| Rated Power (PN) | 2.3 kW |
| Rated Torque (MN) | 11.6 Nm |
| Peak Torque | ~35 Nm |
| Rated Speed (nN) | 3000 rpm |
| Max Speed | 3000 rpm |
| Encoder | Absolute encoder |
| Holding Brake | 24V DC brake |
| Protection Class | IP65 |
| Thermal Protection | PTC |
| Mounting | Flange mount IMB5 |
| Application | KUKA robot joint axis |
